ISUZU 4x2 LHD 14M Aerial Operation Lift Platform High Truck

ISUZU 4x2 LHD 14M Telescopic Type Boom Lift Bucket Truck is used to provide temporary access for people or equipment to inaccessible areas, usually at height.

  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CLW5050JGKIS14T
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 41000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

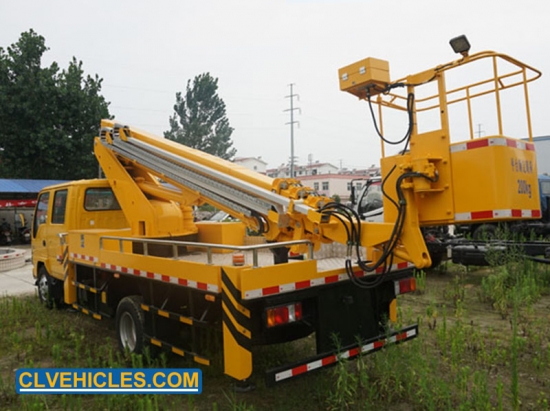

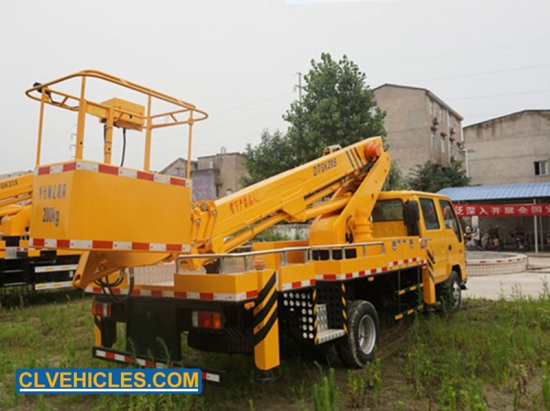

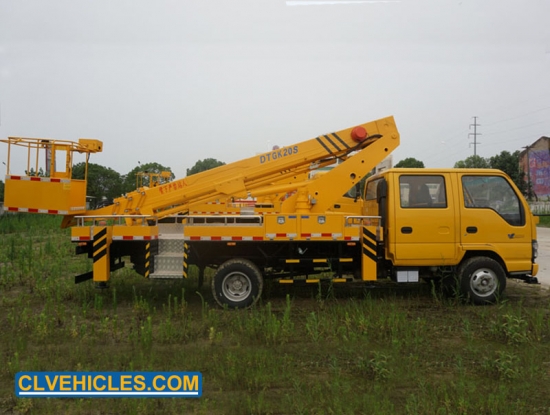

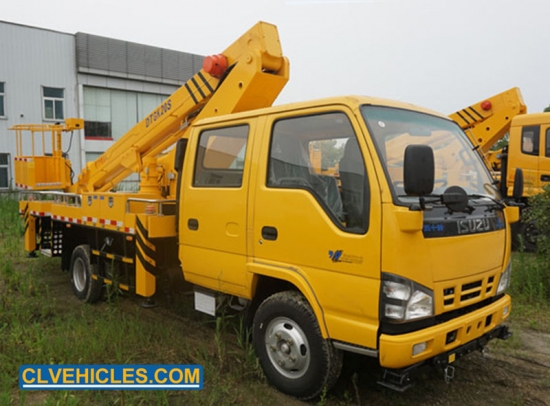

ISUZU 4x2 LHD 14M Telescopic Type Boom Trucks


ISUZU 6 Wheels LHD 14M Telescopic Type Boom Bucket Truck Equipment is a Aerial Platform Truck. It has three telescopic arms and supports people to work in 14 meters high and the arm shaft is compact,flexible and it needs small operating range, supports to work in narrow places. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.


Quick Details



Chassis Brand

ISUZU

Horsepower

98hp

LHD/RHD

LHD

Type

Telescopic Type

Working Height

14 meters

Color

As requirements


Applications


ISUZU 6 Wheels LHD 14M Telescopic Type Boom Bucket Truck is mainly used for municipal engineering, municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.




Competitive Advantages



1. It uses Japan ISUZU single row chassis, the cab has advanced design with fully automatic welding manipulator ABB.


2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 14 meters . And the bucket loading capacity is about 200KG with non-slip body.


3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.


4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.


5. Slewing mechanism adopts adjustable type, which is easy to adjust.




Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Chassis Specification

Truck model

CLW5050JGKIS14T

Cab

ISUZU100Psingle row seat cab

Driving Type

4*2 Left hand driving

Max Speed (km/h)

90

Overall dimension (mm)

7350*2080*2920

GVW (kg)

Appro. 5555

Mass in working order( kg)

Appro. 5335

Wheelbase (mm)

3360

F/R track base (mm)

1504/1425

F/R overhang(mm)

1065/2125

Approach/Departure Angel

27/15

Tire

700-15

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

MSB 5-speed

Bridge

Front axle

2.5T

Rear axle

4.8T

Engine

Model

4JB1CN

Fuel Type

Diesel fuel

Emission Standard

Europe 4

Type

Water-cooled four-stroke, supercharged inter-cooling

Exhaust (ml)

2771

Max output power/rotate speed (hp /rpm )

98/3400

Max torque/rotate speed (N.m/rpm)

220/1700

BrakingSystem

Service Brake

Oil brake

Park Brake

Spring energy

Electric system

24v

Special Function

Working height (m)

14

Max working radius (m)

8

Boom type

Three sections telescopic boom

Rated loading in the bucket(kg)

200

Bucket size (mm)

1000*650*1200

Rotating speed (r/min)

0-2

Rotation Angle

360°

Supporting leg

foursetshydraulic legs

Span of supporting legs

Horizontal

3500mm

longitudinal

4000mm

Boom Control mode

1.Bucket control

2.Manual operation

Supporting leg Control mode

Manual operation

Working Condition:

1.Altitude: 0-4500m

2.Temperature: -350C~+450C

3.Relative humidity: 80%

4.Wind force: ≤8 degree
