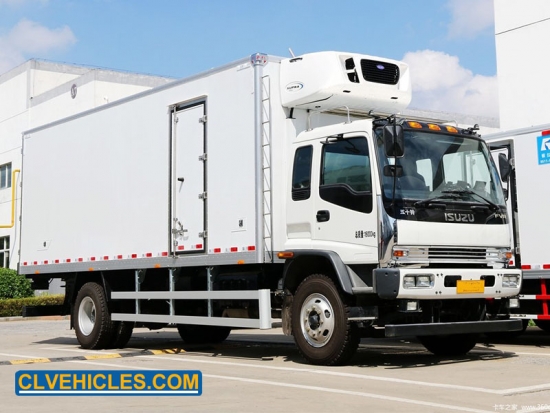

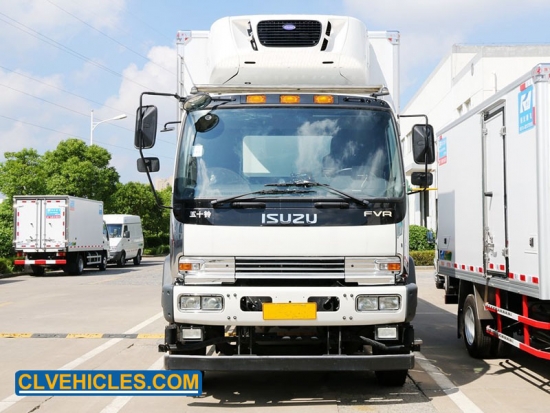

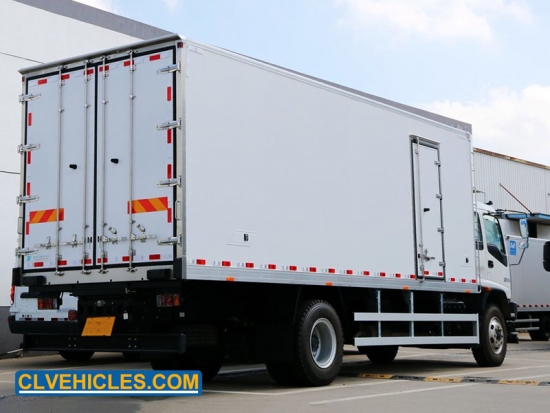

ISUZU FVR 18 ton Freezer Fridge Box Refrigerator Truck

ISUZU FVR 18000KG Freezer Fridge Box Refrigerator Truck

The refrigerated truck is designed to ensure the quality of the product. During the transportation process, refrigerating trucks, refrigerated incubators, dry ice and other refrigeration equipment are used for trucks that store items at low temperatures. Nowadays, the use of refrigerated trucks is becoming more and more widely used, from transport food, medicine to chemical products, electronic products, flowers, high-end furniture, etc.

Quick Details

Applications

The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.

Competitive Advantages

1.The “sandwich” board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.

2.Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.

3.The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane;

4.Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.

5.Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.).

Product Details

Customer Services

Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings

After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck According to your request, choose good chassis and refit it to truck. Upper Body Supply only upper body without chassis. According to your chassis drawing, design function parts. Customization Communicate with engineer,making design drawings and produce customized products. Spare Parts Supply all kinds of spare parts on chassis and upper body,replace main parts on trucks as tank and box.

Product Parameters
