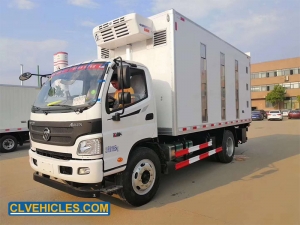

FOTON 2000kg 3000kg Cold Chain Fridge Body Van Truck
Our standard thickness for the truck box front/rear and sides panels are 80mm, and the thickness of the roof and floor panels are 100mm.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The inner and outer covering is high quality fiber glass panel with thickness 2.2mm-3.5mm. The middle insulated panel is made by PU foam.The complete panel is called FRP sandwich panel.
Brand:
heritagetrucksolution.COMModel No.:
CL5251XLCS3Minimum Order Quantity:
1 UnitPrice:
USD 89700Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

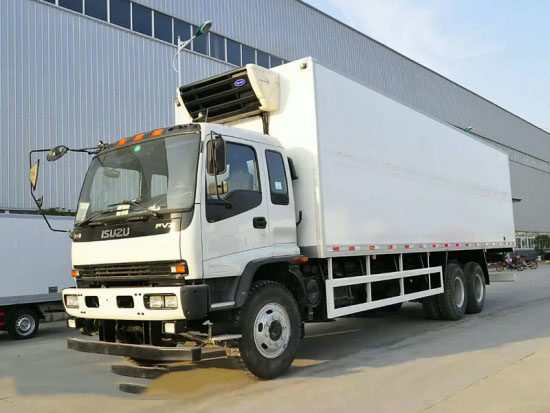

ISUZU FVZ 25000KG Freezer Fridge Box Refrigerator Truck
ISUZU FVZ 25ton refrigerator van truck for meat and fish, is also called freezing truck, refreshment truck, refrigerated and insulated truck, medicine and vaccine carrier, is a kind of used to transport frozen or fresh goods enclosed van truck, is a special transport vehicle equipped with refrigeration unit and polyurethane insulating box. It is commonly used to transport frozen food, dairy products, seafood, vegetables, fruits, vaccines, drugs, etc., mostly used in pharmaceutical companies, supermarkets, cold storage, food factory, pharmaceutical factory.
Quick Details
Length of Van box |
9400mm |
Van box material |
Glass fiber reinforced plastics |
Chassis brand |
ISUZU FVZ |
Horsepower |
300hp |
Refrigeration unit |
THERMO KING T-1100 |
Temperature |
-15℃ |
Applications

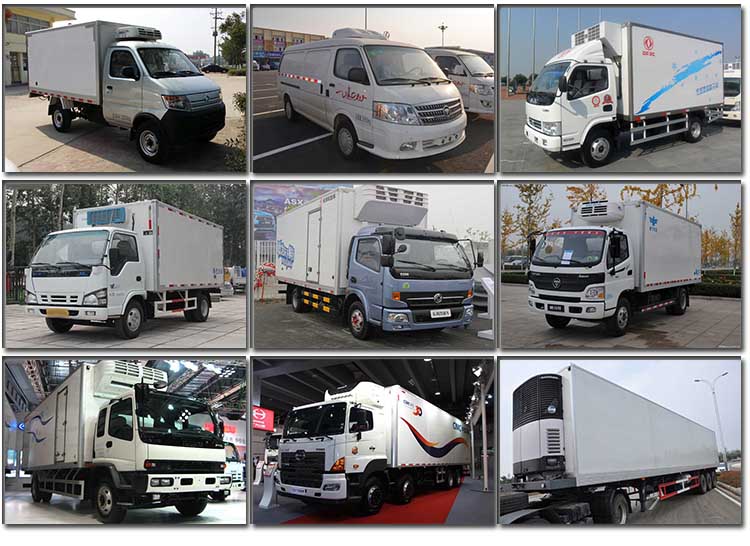

The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.
Competitive Advantages
1.The “sandwich” board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
2.Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.
3.The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane;
4.Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
5.Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.).

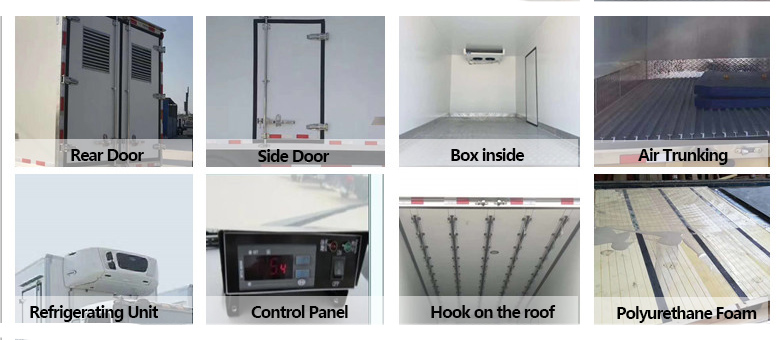

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
Chassis Specification |
||||
Chassis Brand |
ISUZU FVZ |
|||
Cab |
Single row cab with power steering, electronicflame-out, A/C |
|||
Driving Type |
6*4 |
|||
Max Speed (km/h) |
105 |
|||
Overall dimension(mm) |
11700×2490×3850(mm) |
|||
GVW(kg) |
25000 |
|||
Mass in working order(kg) |
14200 |
|||
Wheelbase(mm) |
5700+1300 |
|||
F/R track base(mm) |
1605/1625 |
|||
F/R overhang(mm) |
1430/25701110/2570 |
|||
Approach/Departure Angel |
24/10 |
|||
Tire |
11.00R20 |
|||
Clutch |
Single-plate dry diaphragm spring clutch |
|||
Gear box |
6speed+1reverse |
|||
Bridge |
Front axle |
6300kg |
||
Rear axle |
13000kg |
|||
Engine |
Fuel Type |
Diesel |
||
Model |
6HK1-TCH |
|||
Exhaust(ml) |
7800 |
|||
Max output power (hp) |
300hp |
|||
Braking system |
Service Brake |
Air brake |
||
Park Brake |
Spring energy |
|||
Electric system |
24v |
|||
Upper-Body Specification |
||||
Van boxdimension(mm) |
9400×2280×2360 |
|||
Material of van box |
Glass fiber reinforced plastics |
|||
Insulation thickness(mm) |
80 |
|||

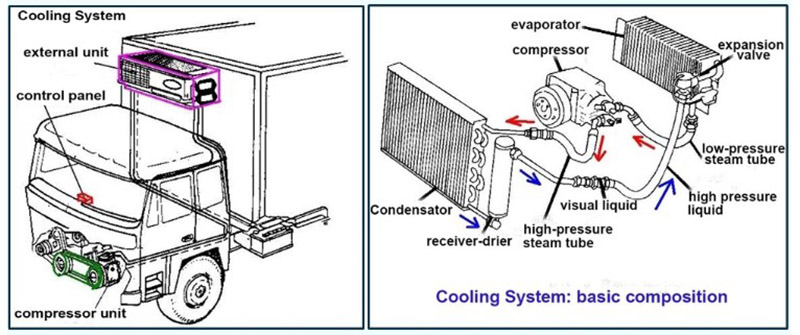

Refrigeration units |
THERMO KING T-1100 |
|||
Temperature setting range |
-30℃—+30℃ |
|||
Refrigerant Type |
R404A |
|||
Refrigerant Filling quantity (kg) |
2.5 |
|||
Compressor Model |
TK21 |
|||
Compressor Cylinders |
10 |
|||
CompressorDisplacement (cm3) |
214.7 |
|||
RefrigeratingCapacity (W) |
||||
Ambient temperature 30℃ (A.T.P.) |
0℃ 5200 |
-25℃ 2720 |
||
Air Volume(@0 static pressure)(m3/h) |
2500 |
|||
Air speed(m/s) |
3 |
|||
Current consumption |
12 VDC/ 44A |
24VDC/ 22A |
||
Weight (kg) |
102 |
