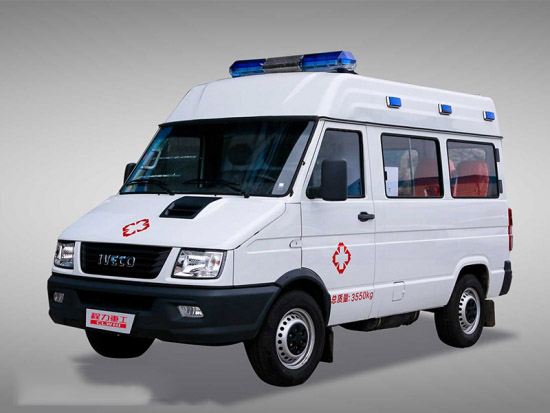

IVECO High Quality Diesel Basic Life Support Transit Ambulance Car

IVECO ambulance install a long medical cabinet on the left side of medical cabin, can be placed first aid equipment. And a cabinet can put oxygen cylinders.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5040XJHNJ5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 25,800 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

IVECO 2.5T diesel basic lift support transit ambulance car


IVECO ward-type ambulance equipped the new technology and humanized design. Patient room install with completed medical equipment and service equipment. IVECO ambulance vehicle model have beauty outside and large 2.5T diesel horsepower, suitable for city transport and patient rescue first-aid.


Quick Details



Size of ambulance
4850×2000×2640
A/C
Include
Chassis brand
IVECO
Horsepower
122hp(Euro 5)
Outside
Provide free logo design,both sides doors  pasted with cross mark
Oxygen supply system

One 10-liter oxygen cylinders

One directly connected oxygen cylinder with oxygen pressure reducing valve

Upholstery ABS composite material, high-duty,anti-microbial
First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher

Applications


Ambulance designed and equipped for the treatment, monitoring and transportation of critically ill patients. Ambulance equipped with first aid resuscitation equipment and essential medicines that can rescue critically ill or injured persons on site or during transportation.

Transfer type: transporter ambulance is the most common ambulance that can be used to transport patients with relatively stable condition to hospital. Only some simple medical treatments such as infusion, oxygen inhalation, hemostasis, bandaging and so on are allowed in transit.

 Guardianship type: guardianship ambulance refers to the possession of first aid recovery equipment and necessary drugs, capable of rescuing critically ill and injured people at the scene or in transit.


Competitive Advantage


1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you.


2. 2.5T large diesel exhaust, high speed for transportation.


3. Use SOFIM engine, oil exhaust only 8L/100km.


4. Gearbox use FPT 5-speed, min turning diameter decrease 0.8 to 9.9m.


5. Ambulance equipped with complete medical equipment with economic price.


6. Chassis is well-known IVECO brand.


Product Details



Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Chassis Specification

Truck model

CLW5040XJHNJ5

Cab

IVECO CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

125

Overall dimension(mm)

4850×2000×2640

Ambulance Van dimension (mm)

3100×1700×1850

GVW(kg)

3550

Mass in working order(kg)

2480

Wheelbase(mm)

2800

Approach/Departure Angel

21/14.5

Tire

215/75R16LT

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

FPT 5-Speed gear box

Suspension

Front

Front independent torsion bar spring

Rear

Rear Hotchkiss suspension leaf spring

Engine

Model

SOFIM8140.47Z5

Fuel Type

Diesel

Type

2.5T In-line four cylinder supercharged cold cylinder direct injection

Exhaust(ml)

2499

Max output power/ rotating speed(hp/rpm)

122/3600

Max Torque/rotating speed(nm/rpm)

285/1800

Braking system

Service Brake

Air brake and dish brake

Park Brake

Spring energy

Electric system

24v

Upper-Body specification

Basic configuration

Medical warehouse air conditioning and heating

Circuits and medical appliances

Alarm and warning system

Long Row Standard Police Lights

100 watt siren and handheld control

power supply system

500 watt power inverter

220v power port

control system

Medical warehouse seesaw control switch

Oxygen supply system

one10-liter oxygen cylinders, special shock-absorbing clamps

One directly connected oxygen cylinder with oxygen pressure reducing valve

humidification bottles

Medical warehouse interior

Original car interior,

partition wall,

push-pull observation window on the partition wall,

pill cabinet behind the partition wall,

fixed oxygen cylinder beside the pill cabinet,

long seat belt and seat belt pre-buried, medical floor leather

Seat system

2 seat long soft seat on the right,

one forward seat on the right

First aid

Automatic loading stretcher,

sliding infusion stand with 2 sets of infusion bottle hooks,

fire extinguisher

Exterior

Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors
