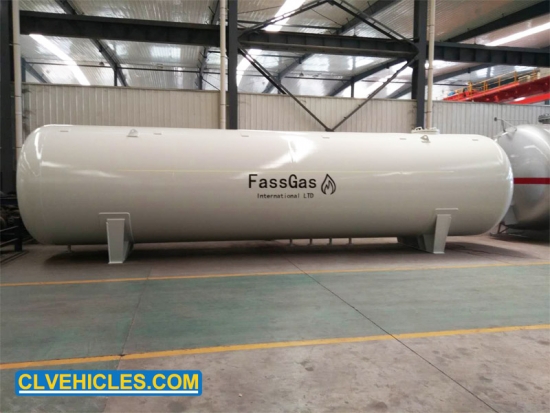

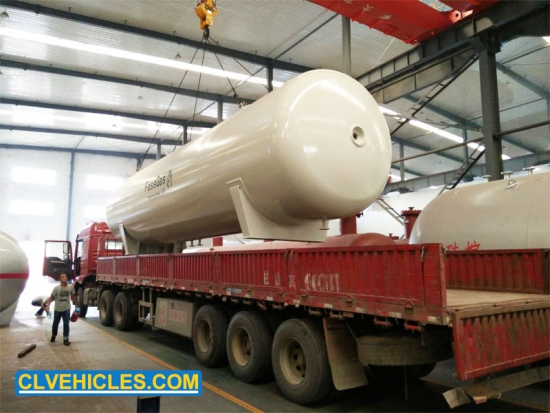

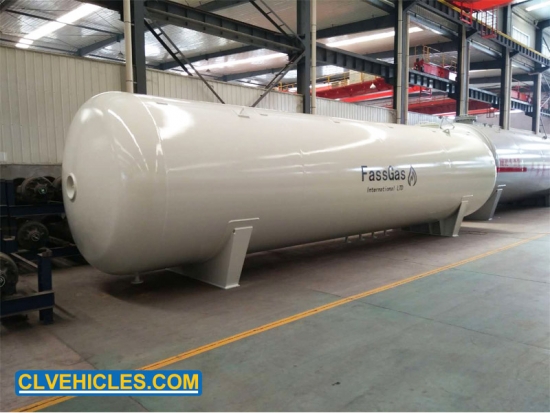

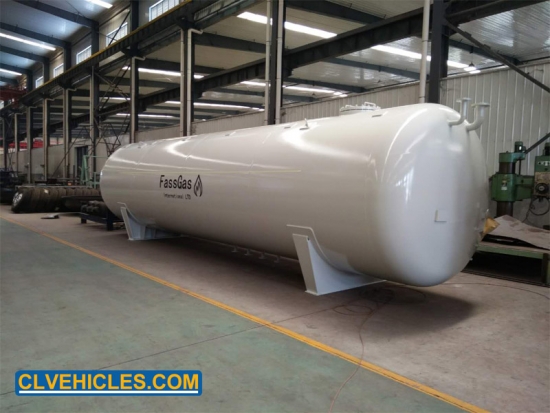

LPG Skid Tank 40000Liters LPG Storage Tank 20MT LPG Tanker For Sale


LPG storage tank is a professional product for storing liquefied petroleum gas (LPG). It is a special equipment, a type of pressure vessel, Q345R material.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL20190540
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD16800
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

40M3 LPG Horizontal Tank 40CBM LPG Gas Storage Tank


Liquefied petroleum gas (LPG) storage tanks include compressed gas storage tanks or liquefied gas storage tanks, etc. The LPG storage tanks can be divided into fixed volume storage tanks and movable volume storage tanks according to the volume change of the containers. Large fixed volume LPG storage tanks are made into spherical shape, while small ones are made into cylindrical shape.The movable volume storage tank is also known as the low pressure gas storage tank, commonly known as the gas cabinet. Its geometric volume can be changed, and it is sealed tightly without air leakage. It has the function of balancing the air pressure and regulating the air supply, and the pressure generally does not exceed 60MPa.


Quick Details



Material of tank Carbon steel Q345R

Propane tank capacity

40000 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG storage tank is widely used in the gas industry, hospitals, metal smelting,filling stations and liquefaction plants and other large gas users, is to achieve the best central air supply products.




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Specification of 40CBM LPG Tank

Volume of Tank

40CBM/40,000Liters

Filling Weight

15960kg

Tank Weight

9020kg

Thickness of Shell (mm)

12 mm

Thickness ofHead (mm)

14 mm

Tank Diameter (mm)

2150 mm

External Dimensions (mm) (length x width x height)

11408 x 2174 x 2534mm

Material of Tank and Main Pressure Parts

Carbon Steel Q345R

Filling Medium

Liquefied Petroleum Gas ( Propane)

Design Pressure

17.7Bar

Corrosion Allowance

1 mm

Medium Density

420~590 kg/ cbm

Color & Logo

Customised for you requests

Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,

Pressure gauge, Temperature Gauge.

List Of Safety Accessories

Model

Item

Qty

Junction surface

J41N-2.5-50

Stop Valve DN50

6

RF

J41N-2.5-25

Stop Valve DN25

2

RF

J41N-2.5-80

Stop Valve DN80

1

RF

J24W-320-DN6

J24W Needle Valve M20*1.5

1



HG21584-95

Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5

1

RF

A42F-25-100

Safety Valve DN80

1

RF

Y-100T

Pressure Gauge M20*1.5  1.5degree 0~4Mpa

1



WTQ-280

Thermometer M33*2 2.5 degree

1

40℃~60℃
