This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Bulk cement semi trailer is a special vehicle for transporting large quantities of bulk cement, and the volume is usually between 35 m³and 45 m³.
Brand:
heritagetrucksolution.COMModel No.:
CL9403GFL3Minimum Order Quantity:
1 UnitPrice:
USD 29880Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcPowdered Material Transport Tank Bulk Cement Trailer

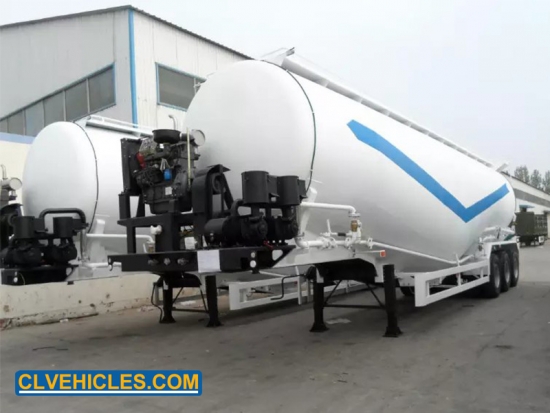

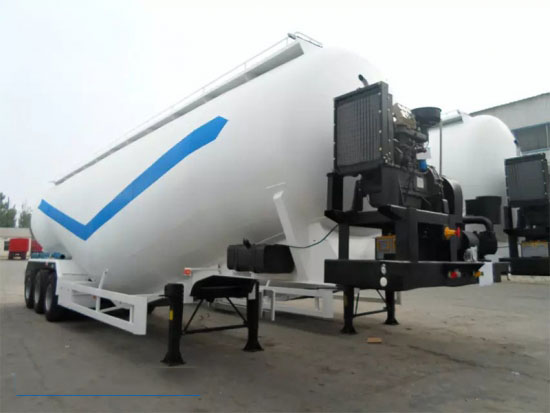

Powder material transport semi-trailer is for large quantities of dust materials (bulk cement) transport of special vehicles,It is suitable for the transportation and air pressure unloading of fly ash, cement, limestone, ore powder and other particles whose particle diameter is not more than 0.1 mm.
Quick Details
| Semi-trailer type | Bulk Cement semi-trailer |
| Length | 12100mm |
| Loading capacity | 45CBM |
|
Axle |
FUWA |
Applications
This cement tank bulk semi trailer available for transporting bulk cement,fly ash, Toner dust and all kinds of bulk powder goods in a short or long distance or work as a bulk cement container for a while.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this flatbed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Product |
Bulk Cement semi-trailer |
||
|
Tare Weight |
About 10350kg |
||
|
Dimension |
Length:12100 mm(outside dimension) |
||
|
Width: 2500 mm(outside dimension) |
|||
|
Height: 3950mm(outside dimension） |
|||
|
Loading Capacity |
35000L |
||
|
Tank Assembly |
Front/Rear end plate |
Material |
Carbon steel |
|
Thickness |
6mm |
||
|
Tank Body |
Material |
Carbon steel |
|
|
Thickness |
5mm |
||
|
Manhole Cover |
Diameter |
diameter 500mm |
|
|
Material |
Carbon steel |
||
|
Number |
4 pcs |
||
|
Discharging Valve |
Diameter |
3or 4 inch |
|
|
Number |
1 PCS 6M RUBBER HOSE |
||
|

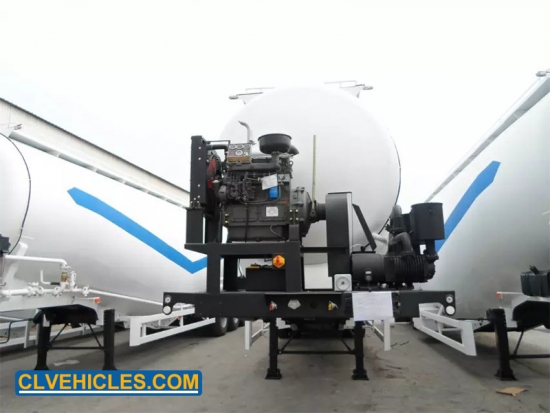

Diesel engine |
WEICHAI，Tianhe 4100/4102 or other brand |
||
|
Discharging Pipe |
Diameter |
3 inch |
|
|

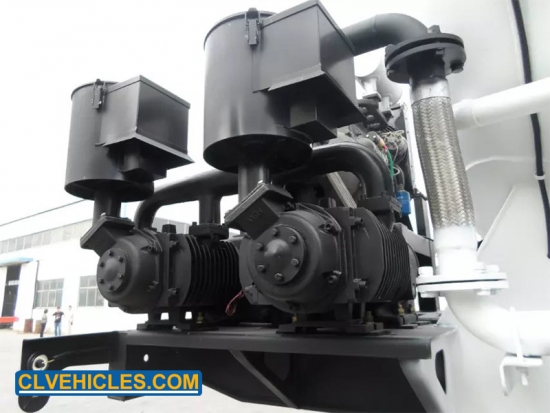

Compressor |
BOHAI 10m³/12 m³or other brand |
||
|
Cat Walk |
with, Standard type |
||
|
Running mechanism |
Main beam |
Material |
Q235 carbon steel |
|
Plate |
upper plate is 14mm, middle plate is 8mm, Down plate is16mm |
||
|
Height |
500mm |
||
|
Side beam |
Material |
Q235 carbon steel |
|
|
Thickness |
16mm or 18mm channelsteel |
||
|
Axle |
Brand |
FUWA |
|
|
Type |
13T |
||
|
Number |
3 pcs |
||
|
Rim |
Type |
9.0-22.5 |
|
|
Number |
13pcs |
||
|
Tyre |
Brand |
Triangle brand |
|
|
Type |
12R22.5 |
||
|
Number |
13pcs |
||
|
Suspension |
American type mechanical suspension for 3 axle |
||
|
Spring leaf |
Leaf width |
90mm |
|
|
Leaf thickness |
13mm |
||
|
Layer/set |
10 Layer |
||
|
King pin |
Brand |
JOST brand |
|
|
Type |
Bolts type |
||
|
Diameter |
2.0 inch |
||
|

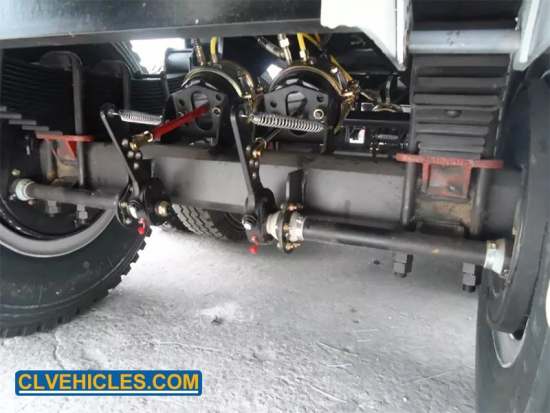

Brake system |
Air tank |
45L air tanks |
|
|
Brake chamber |
6 double Spring brake chamber |
||
|
ABS |
Without |
||
|
Landing gear |
Brand |
JOST brand |
|
|
Type |
JOST C200T |
||
|
Accessories |
Spare tyre carrier |
2 set |
|
|
Light |
LED light |
||
|
Voltage |
24V |
||
|
Receptacle |
7 ways (7 wire harness) and quick change type |
||
|
Tool box |
One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
||
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat ofanti corrosive prime, 2 coats of final paint |
||
Bulk Cement Semi Trailers are for cement, dry powder’ s transport and storage. Because of the professional design, mature producing technology, and the strong sense of responsibility, our trailers are popular with our customers.
Bulk Cement Tank Semi Trailer Manufacture bulk cement tank truck trailer/3 axles bulk cement tank semi trailer.And we can also design the bulk cement tank semi trailer according to your exact requirements.
Cement bulker tank trailer is used to transport bulk powder such as cement, fly ash, and other powder which is smaller than 1mm. The cement bulker trailer is able to delivery more cement by one trip, and save packaging cost for the user.
Dry powder materiel tanker trailer, adopt high strength wear-resistant steel. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.
Progress Tank brand propane trucks are available in a wide range of sizes and configurations in capacities ranging from 2800 to 5000 gallons.
The skeleton semi trailer is specially designed to carry various cargo containers.You can choose to use you load trailer transport one 20 inch ,40inch or 45 inch container or two 20 inch containers at one time.
