Dongfeng 8000 liter lpg storage tank truck

Progress Tank brand propane trucks are available in a wide range of sizes and configurations in capacities ranging from 2800 to 5000 gallons.

Brand:
heritagetrucksolution.COM
Model No.:
CL5110GYQD
Minimum Order Quantity:
1 Unit
Price:
USD33500
Payment Terms:
T/T, L/C, Western Union
Delivery Time:
25~35 days after we get the deposit
Shipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

Contact Now

Overview
Parameters

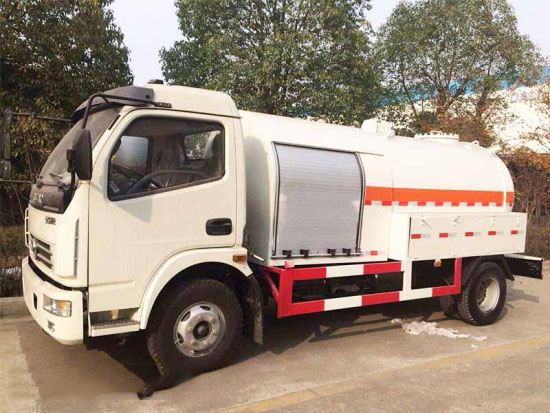

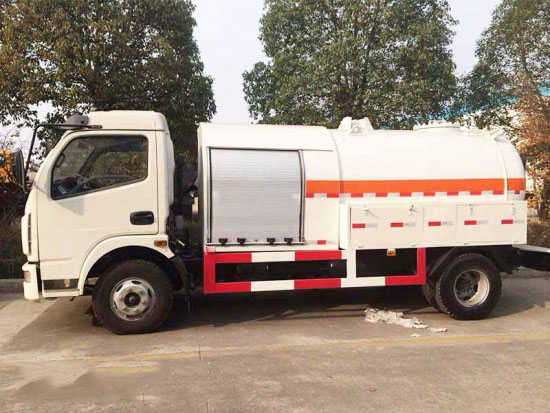

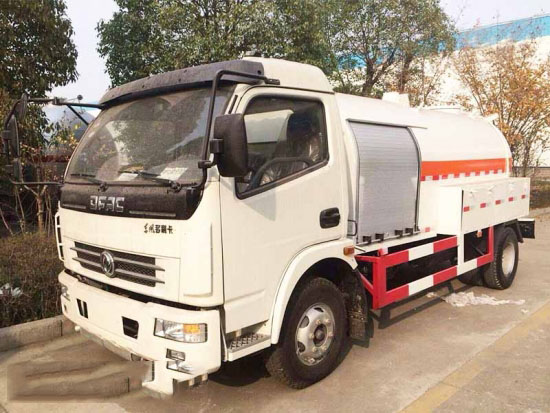

Dongfeng 8000 liter lpg storage tank truck

The LPG tanker material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.

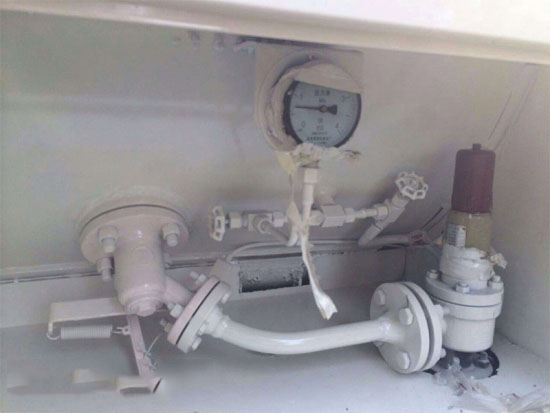

LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.

Quick Details

LPG tank truck size	650022502600
Propane tank capacity	8000 liter
Design temperature	50℃
Design pressure	1.77Mpa
Leak test pressure	1.77Mpa
Hydraulic test pressure	2.3Mpa

Applications

LPG tank truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.

Competitive Advantages


Our LPG tanker truck is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection	Emergency shut off valve fore safety

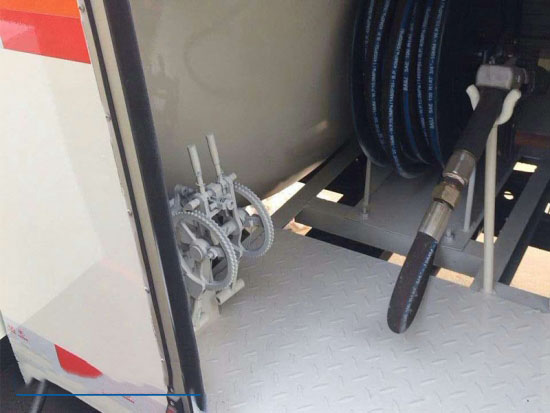

Double side for discharge and loading ,double tool box and valve box	LPG dispenser optional with automatic fault detection and overload protection

Product Details

Customer Services

Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings

After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.

Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.

Customization
Communicate with engineer,making design drawings and produce customized products.

Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.

Product Parameters

Truck Specification
Chassis model							CLW5090GYQD
Cab							Dongfeng single row cab, with power steering.，without a/c
Driving Type							4*2 Left hand driving
Max Speed (km/h)							99
Overall dimension（mm）							650022502600
GVW（ kg）							9525
Mass in working order（ kg）							5910
Wheelbase（mm）							3800
F/R track base（mm）							1903/1640
F/R overhang（mm）							1130/1900
Approach/Departure Angel							17.5/12.5
Tire							7.00R16 (6+1)
Clutch							Single-plate dry diaphragm spring clutch
Steering							Hydraulic steering with power assistance
Gear box							5-speed
Bridge	Front axle						3T
	Rear axle						5T
Enging	Model						YC4E140-33
	Fuel Type						Diesel fuel
	Type						Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust（ml）						4257
	Max output power/rotate speed (hp /rpm )						140/3200
Braking system	Service Brake						Compressed air brake
	Park Brake						Spring energy
	Auxiliary brake						engine exhaust brake
Eletric system							12v
LPG TANK specification
Design specific gravity							0.42 Kg/L
Tankmaterial							Q345R
TankDesigned thickness		End cover					9.35mm
		Tank body					9.37mm
Design temperature							500C
working temperature							20~500C
Corrosion allowance							1.0mm
Designed pressure							1.77Mpa
Hydraulic test pressure							2.3MPa
Leak test pressure							1.77Mpa
Heat treatment							Wholly get rid of stress
Use Years							Ten years
LPGdispenser		Function					Dispenser LPG to LPGcylinder or other LPG truck
		Flow rate					10 ~ 60L/min
		Max working pressure					2.5Mpa
LPG pump		Function					Delivery and pump LPG
		Flow rate					30-80L/min
		Working pressure					1.60Mpa
Liquid level meter		Type					Rotary
		Model					YWG-2.5
		Nominal pressure					PN2.5Mpa
		Surveying range					50-2300mm
		Precision					2.5Grade
Emergencycutting valve			Type			Gas phase		QCJ43F-2.5-8
						Liquid phase		QCJ43F-2.5-7
			Nominal pressure					PN2.5Mpa
			Nominaldiameter	Gas phase				DN25mm
				Liquid phase				DN50mm
			Operation way					Fluid pressure
			Closing time					≤10 Sec
			Melting switch temperature					70±5°C
Safe valve			Type					A412F-2.5-16
			Model					Inner full lift
			Nominal pressure					PN2.5 MPa
			Nominal diameter					DN50
			Opening pressure					1.7 MPa
			Closing pressure					1.86-1.94MPa
			Complete opening pressure					<2.12 MPa
Loading and unloading device			Valve type			Gas phase		YKAG-3.3-6
						Liquid phase		YKAG-3.3-7
			Model					Quick tie-in
			Nominal Diameter		Gas phase			DN25mm
					Liquid phase			DN50mm
			Pressure meter					YN-100T
			Temperature gauge					WTQ-280
Other equipment
1.double tool box 2.double valve box 3.doubleEmergency Cut-off Valve 4.single pipeliquid out 5.both side loading andunloading
