Dongfeng 5500 Liter Propane Storage Tank Truck
For the safe usage of the LPG products, we process several tests for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The basic equipment of the lpg gas tank truck includes liquid level indicator, gas dispenser, inlet and outlet, pump box, tool box, safety valve, temperature meter, pressure meter, emergency shut valve, 1 pcs spare tire, fire extinguisher, static electricity protection ground tape, etc.
Brand:
heritagetrucksolution.COMModel No.:
CL5250GYQZMinimum Order Quantity:
1 UnitPrice:
USD63000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

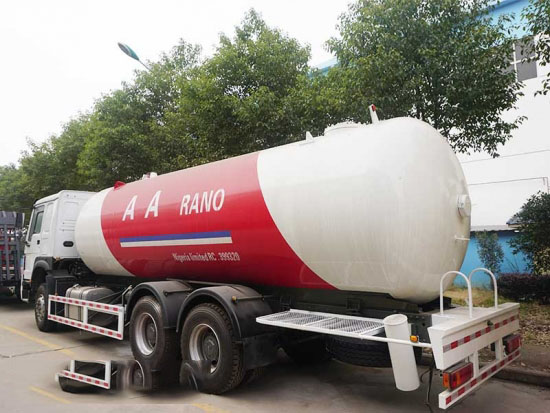

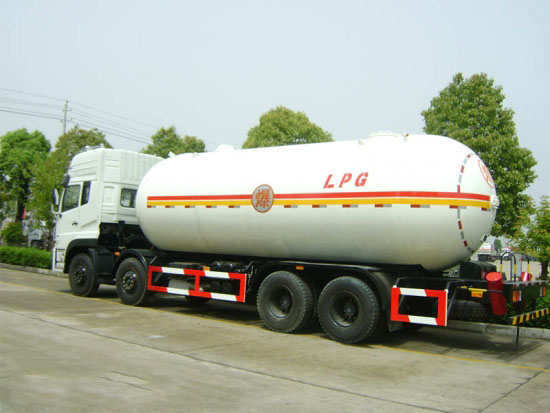

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHowo 25000 liter lpg road tanker
The LPG tanker material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
Quick Details
LPG tank truck size | 10140*2430*3395 |
Propane tank capacity |
25000 liter |
Design temperature |
50℃ |
Design pressure |
1.77Mpa |
Leak test pressure |
1.77Mpa |
Hydraulic test pressure |
2.3Mpa |
Applications
LPG tank truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
|
|
Our LPG tanker truck is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Truck Specification |
||||||||
Chassis model |
CL5250GYQZ |
|||||||
Cab |
HW76 CABIN , with power steering.,without a/c |
|||||||
Driving Type |
6*4 Left hand driving |
|||||||
Max Speed (km/h) |
99 |
|||||||
Overall dimension(mm) |
10140*2430*3395 |
|||||||
GVW( kg) |
24716 |
|||||||
Mass in working order( kg) |
14300 |
|||||||
Wheelbase(mm) |
4600+1350 |
|||||||
F/R track base(mm) |
2022/1830 |
|||||||
F/R overhang(mm) |
1500/1945 |
|||||||
Approach/Departure Angel |
15/23 |
|||||||
Tire |
12.00-20 (10+1) |
|||||||
Clutch |
Single-plate dry diaphragm spring clutch |
|||||||
Steering |
Hydraulic steering with power assistance |
|||||||
Gear box |
HW19710( 10 front gears +2 rear gears ) |
|||||||
Bridge |
Front axle |
HF7 |
||||||
Rear axle |
ST16 |
|||||||
Enging |
Model |
WD615.47 |
||||||
Fuel Type |
Diesel fuel |
|||||||
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|||||||
Exhaust(ml) |
9726 |
|||||||
Max output power/rotate speed (hp /rpm ) |
371/2200 |
|||||||
Max torque/rotate speed(n.m/rpm) |
1500/1100-1600 |
|||||||
Braking system |
Service Brake |
Compressed air brake |
||||||
Park Brake |
Spring energy |
|||||||
Auxiliary brake |
engine exhaust brake |
|||||||
Eletric system |
24v |
|||||||
LPG TANK specification |
||||||||
Design specific gravity |
0.42 Kg/L |
|||||||
Tankmaterial |
Q345R |
|||||||
TankDesigned thickness |
End cover |
9.35mm |
||||||
Tank body |
9.37mm |
|||||||
Design temperature |
500C |
|||||||
working temperature |
20~500C |
|||||||
Corrosion allowance |
1.0mm |
|||||||
Designed pressure |
1.77Mpa |
|||||||
Hydraulic test pressure |
2.30MPa |
|||||||
Leak test pressure |
1.77Mpa |
|||||||
Heat treatment |
Wholly get rid of stress |
|||||||
Use Years |
Ten years |
|||||||
LPGdispenser |
Function |
Dispenser LPG to LPGcylinder or other LPG truck |
||||||
Flow rate |
10 ~ 60L/min |
|||||||
Max working pressure |
2.5Mpa |
|||||||
LPG pump |
Function |
Delivery and pump LPG |
||||||
Flow rate |
30-80L/min |
|||||||
Working pressure |
1.60Mpa |
|||||||
Liquid level meter |
Type |
Rotary |
||||||
Model |
YWG-2.5 |
|||||||
Nominal pressure |
PN2.5Mpa |
|||||||
Surveying range |
0-2100mm |
|||||||
Precision |
2.5Grade |
|||||||
Emergencycutting valve |
Type |
Gas phase |
QCJ43F-2.5-8 |
|||||
Liquid phase |
QCJ43F-2.5-7 |
|||||||
Nominal pressure |
PN2.5Mpa |
|||||||
Nominaldiameter |
Gas phase |
DN25mm |
||||||
Liquid phase |
DN50mm |
|||||||
Operation way |
Fluid pressure |
|||||||
Closing time |
≤10 Sec |
|||||||
Melting switch temperature |
70±5°C |
|||||||
Safe valve |
Type |
A412F-2.5-16 |
||||||
Model |
Inner full lift |
|||||||
Nominal pressure |
PN2.5 MPa |
|||||||
Nominal diameter |
DN50 |
|||||||
Opening pressure |
1.7 MPa |
|||||||
Closing pressure |
1.86-1.94MPa |
|||||||
Complete opening pressure |
<2.12 MPa |
|||||||
Loading and unloading device |
Valve type |
Gas phase |
YKAG-3.3-6 |
|||||
Liquid phase |
YKAG-3.3-7 |
|||||||
Model |
Quick tie-in |
|||||||
Nominal Diameter |
Gas phase |
DN25mm |
||||||
Liquid phase |
DN50mm |
|||||||
Pressure meter |
YN-100T |
|||||||
Temperature gauge |
WTQ-280 |
|||||||
Other equipment |
||||||||
1.double tool box 2.double valve box 3.doubleEmergency Cut-off Valve 4.single pipeliquid out 5.both side loading andunloading |
