Dongfeng 5500 Liter Propane Storage Tank Truck
For the safe usage of the LPG products, we process several tests for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
LPG tank truck It is used for transporting liquefied petroleum gas, Generally by the automobile chassis, the tank body, the operation box 3 majority composition.
Brand:
heritagetrucksolution.COMModel No.:
CL20190P35Minimum Order Quantity:
1 UnitPrice:
USD65800Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

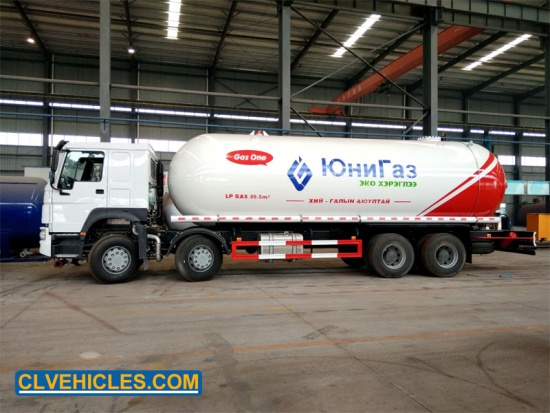

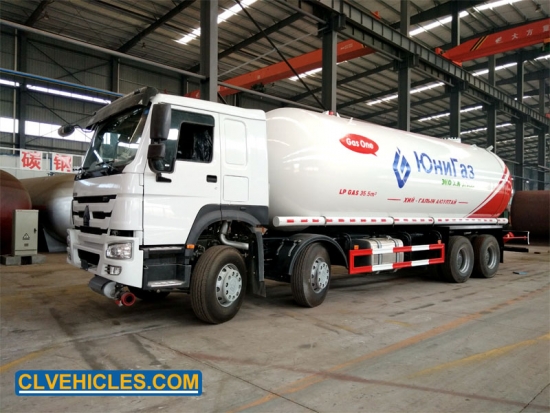

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDongfeng kingland 35000 liter propane delivery truck
The term "liquefied gas truck" refers to a special tanker equipped with a canister container (hereinafter referred to as a tank), a control system and safety facilities for transporting liquefied gas.The tank body is mounted on the chassis of a truck or a trailer, which is divided into a single-car type and a trailer type, and a semi-trailer type and a full-trailer type.the truck to transport the highest working pressure is greater than or equal to 0.1 MPa, the design temperature is not more than + 50 ℃ of liquefied gas.
Quick Details
| Material of tank | Carbon steel Q345R |
|
Propane tank capacity |
35500 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
|
|
|
|
Our LPG tanker truck is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
|
Cabin |
Sinotruk HW76 Cabin ,left hand drive, |
||
|
Vehicle Main Dimensions |
Overall dimensions |
11980×2500×3690 |
|
|
Wheel base (mm) |
1900+4350 +1350 |
||
|
Wheel track (front/rear) (mm) |
1900 /1800 |
||
|
Approach/Departure angle(°) |
38/18 |
||
|
Front axles loading capacity |
2x7000 |
||
|
Rear axles loading capacity |
2x16000 |
||
|
Max. driving speed(km/h) |
90 |
||
|
Engine |
Brand |
Sinotruk |
|
|
Model |
WD615.47 |
||
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Horse Power(HP) |
371 |
||
|
Displacement (cc) |
7200 |
||
|
Emission standard |
Euro II |
||
|
Gearbox |
10 forwards & 2 reverse |
||
|
Tire |
10.00-20 nylon tires with one spare ,11 pieces totally |
||
|
LPG Tank System |
Volume of tank:35.5 CBM |
||
For the safe usage of the LPG products, we process several tests for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc.
The basic equipment of the lpg gas tank truck includes liquid level indicator, gas dispenser, inlet and outlet, pump box, tool box, safety valve, temperature meter, pressure meter, emergency shut valve, 1 pcs spare tire, fire extinguisher, static electricity protection ground tape, etc.
Propone lpg tanker truck is mainly used to transport LPG,include propane, isobutane, etc liquefied petroleum gas. It belongs to Pressure vessel category, it need good quality and high safety. We have more than ten year' experience, we can manufacturer LPG truck
Progress Tank brand propane trucks are available in a wide range of sizes and configurations in capacities ranging from 2800 to 5000 gallons.
LPG truck (also called truck mounted LPG tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
LPG bobtail truck It is used for filling liquefied petroleum gas to LPG filling station.
