25000Liters Skid Mounted LPG Gas Filling Plant 25CBM LPG Gas Tank Skid Station

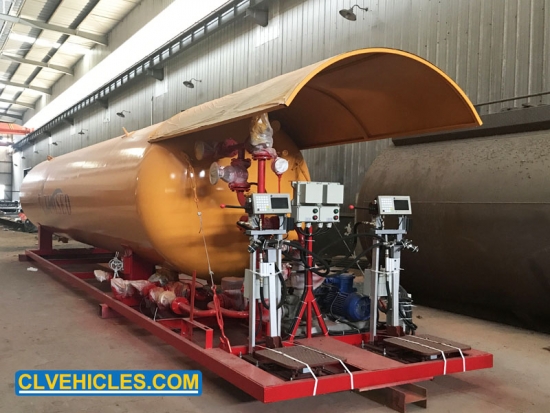

The LPG skid mounted station is an integrated equipment integrating LPG storage tanks, pumps, motors, pipelines, valves and filling equipment. The skid mounted station can fill LPG into steel cylinders or LPG tankers just like a large LPG station.





  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL2019LP25
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD23600
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

25CBM LPG Filling Station 20CBM LPG Cylinder Station 25M3 LPG Gas Plant


LPG electronic filling scale is an ideal filling equipment for LPG filling station to replace traditional mechanical scales or replace ordinary electronic filling scales. The core control instrument is designed and developed with international advanced electronic components, and the important components such as solenoid valve and sensor are selected from domestic and foreign high-quality supporting manufacturers. It has the characteristics of advanced technology, convenient operation, stable quality and accurate filling. The successful development of this series of equipment has brought great convenience to the operation and management of liquefied gas stations and improved the management level of the gas filling industry.


Quick Details



Material of tank Carbon steel Q345R

Propane tank capacity

25000 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG skid station equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions.




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection

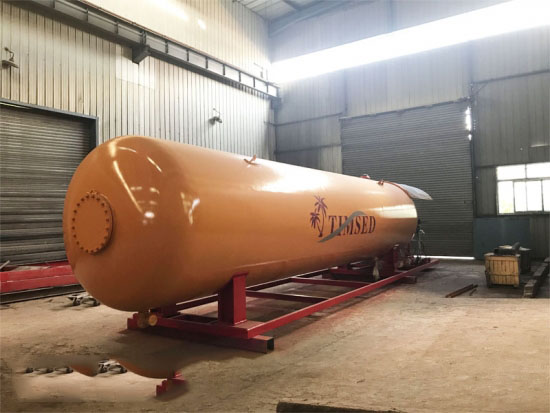

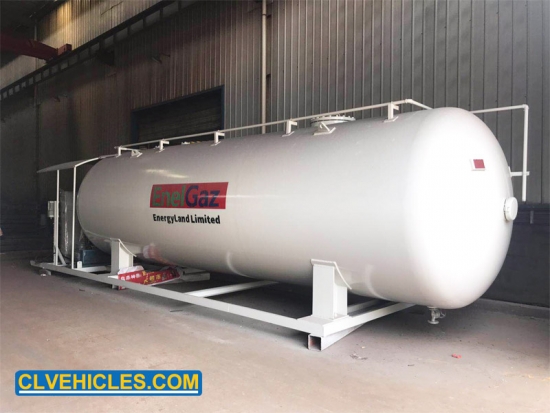

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



25M3 LPG TANK DIMENSIONS

Volume of Tank

25CBM

Filling Weight

9975 kg

Tank Weight

5970 kg

Thickness of Shell (mm)

12 mm

Thickness of Endplate (mm)

12mm

Tank Diameter (mm)

2100 mm

Tank Dimensions (mm) (length x width x height)

7594 x 2124 x 2714 mm

Material of Tank and Main Pressure Parts

Carbon Steel Q345R

Filling Medium

Liquefied Petroleum Gas ( Propane)

Design Pressure

1.77 MPa

Corrosion Allowance

1 mm

Medium Density

500 kg/ M3

Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.

Main parts of LPG Tank

Item

Specification

Quantity

Discharge Pipe

DN80

1

Inflow Pipe

DN80

1

Outlet

DN50

1

Gas phase balance pipes

DN50

2

Manhole

DN450

1

Drain Hole

DN50

1

Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,

Pressure gauge, Temperature Gauge.

Skid Parts List will be show in separated page below.

LPG Skid Part list

Item

Model Number

Quantity (PCS)

LPG Tanker

40CBM

1

LPG Filling scale

/

1

Filling pump (Chinese Brand)

/

1

Motor (Chinese Brand)

/

1

Cut-off Valve

J41N-40 DN50

25
