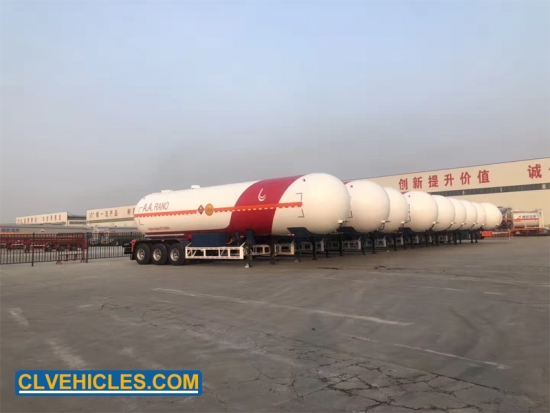

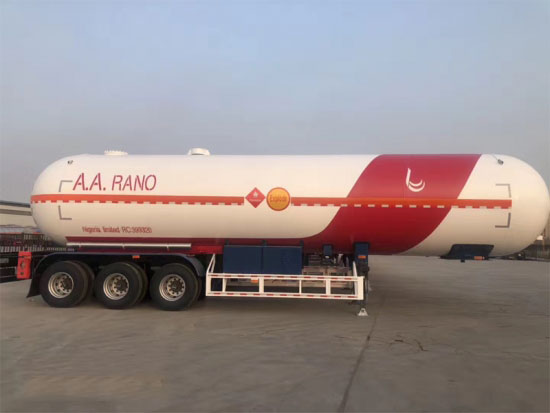

3 axle 54000 liter propane semi trailer
LPG Trailer as known as a Propane semi Trailer is mainly used to transport various liquefied gases, including liquid ammonia, propane, propylene, dimethyl ether, isobutyl fat, and butadiene.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
LPG mobile tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box etc.
Brand:
heritagetrucksolution.COMModel No.:
CL20190P50Minimum Order Quantity:
1 UnitPrice:
USD36700Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc50000Liter LPG Tank Semi-Trailer 50CBM LPG Tanker Trailer For Sale
Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.
Quick Details
Material of Tank |
Carbon Steel Q345R |
Propane tank capacity |
50000 liter |
Design temperature |
50℃ |
Design pressure |
1.77Mpa |
Leak test pressure |
1.77Mpa |
Hydraulic test pressure |
2.3Mpa |
Applications
Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck According to your request, choose good chassis and refit it to truck.
Upper Body design function parts.
Customization
Spare Parts on trucks as tank and box. |
|
Product Parameters
Tank Essential Information |
|
Volume of Tank |
50 CBM (50,000Liters) |
Overall Dimensions(L*W*H) |
12740*2480*3800mm |
FillingWeight |
20832 kg |
Tare Weight |
15300 kg |
Total Weight |
36132 kg |
Wheelbase |
6800+1310+1310mm |
Shell of tank |
|
Products |
Liquefied petroleum Gas(propane) |
Fluid Property |
Flammable |
Design Temperature |
-20~50℃ |
Design Pressure |
1.61 Mpa |
Corrosion Allowance |
1 mm |
Major Materials of Bearing Pressure |
Tanker body:Q345, 12mm |
End plate:Q345R, 12mm,double ellipse |
|
Main beam:16Mn |
|
Detection |
|
Heat Treatment |
Overall treatment in a furnace,600℃to 640℃ |
Flaw Detection |
100% Flaw detection |
Test Pressure |
1.61Mpa |
Hydraulic Test |
2.1Mpa |
Magnaflux inspection |
Aim at welding place thatflaw detection can not cover |
Manhole(As customer’s requirement) |
1, on top |
Safety Valve(As customer’s requirement) |
1, on top |
Running system |
|
Axles |
3*13TFuwa brand |
Suspension |
Mechanical suspension |
Tire |
12R22.5 Tubeless tire,13 including one spare tire |
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
Landing leg |
JOST brand, two-speed, manual operating |
King Pin |
3.5 inch |
