LPG Trailer as known as a Propane semi Trailer is mainly used to transport various liquefied gases, including liquid ammonia, propane, propylene, dimethyl ether, isobutyl fat, and butadiene.
Brand:
heritagetrucksolution.COMModel No.:
CL20190P52Minimum Order Quantity:
1 UnitPrice:
USD37800Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

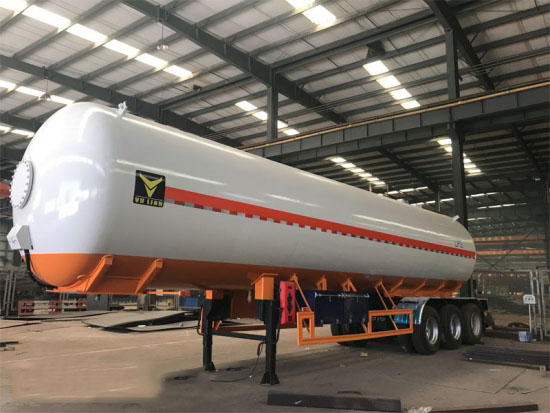

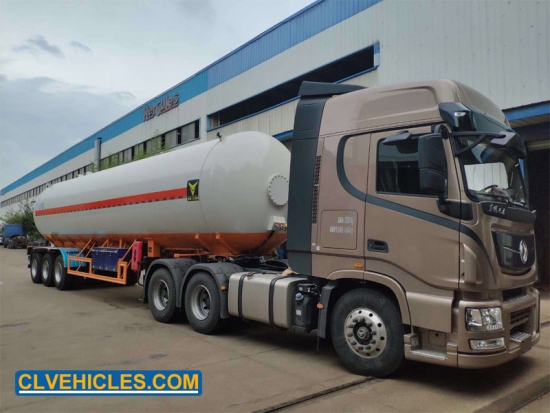

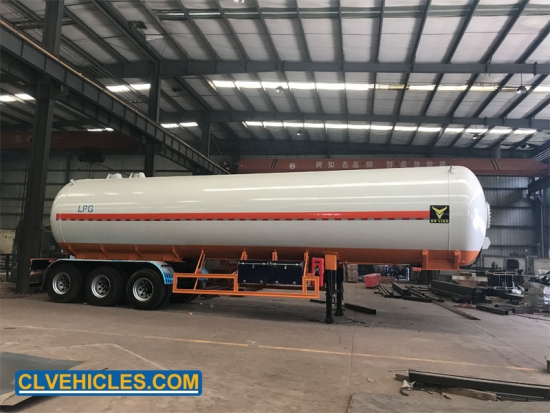

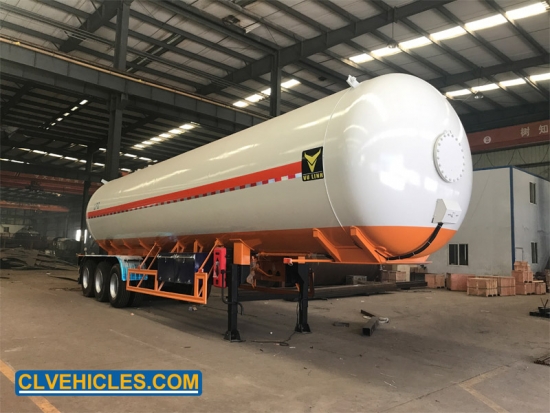

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc3 Axles LPG Tank Semi-Trailer 52CBM LPG Propane Tanker Trailer
Liquefied gas carrier: It is a special vehicle used for road transportation of liquefied gases (liquefied petroleum gas, propane,propylene, liquid ammonia, butadiene, isobutane, butane, isobutylene, etc.).
The liquefied gas transport semi-trailer mainly has the following components:
Liquefied gas tank (made of Q370R steel plate), axle, tire, outrigger, traction pin, double-discharge double valve box (pressure gauge, thermometer, tight-cut valve, ball valve), iron wave-proof plate, safety valve, liquid level Meters, fire extinguishers, toolboxes, anti-static tapes, spare tire carriers, plastic tire fenders, etc.
Quick Details
|
Material of Tank |
Carbon Steel Q345R |
|
Propane tank capacity |
50000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Tank Essential Information |
|
|
Volume of Tank |
52 CBM (52,000Liters) |
|
Overall Dimensions(L*W*H) |
12840*2480*3800mm |
|
FillingWeight |
20832 kg |
|
Tare Weight |
15300 kg |
|
Total Weight |
36132 kg |
|
Wheelbase |
6800+1310+1310mm |
|
Shell of tank |
|
|
Products |
Liquefied petroleum Gas(propane) |
|
Fluid Property |
Flammable |
|
Design Temperature |
-20~50℃ |
|
Design Pressure |
1.61 Mpa |
|
Corrosion Allowance |
1 mm |
|
Major Materials of Bearing Pressure |
Tanker body:Q345, 12mm |
|
End plate:Q345R, 12mm,double ellipse |
|
|
Main beam:16Mn |
|
|
Detection |
|
|
Heat Treatment |
Overall treatment in a furnace,600℃to 640℃ |
|
Flaw Detection |
100% Flaw detection |
|
Test Pressure |
1.61Mpa |
|
Hydraulic Test |
2.1Mpa |
|
Magnaflux inspection |
Aim at welding place thatflaw detection can not cover |
|
Manhole(As customer’s requirement) |
1, on top |
|
Safety Valve(As customer’s requirement) |
1, on top |
|
Running system |
|
|
Axles |
3*13TFuwa brand |
|
Suspension |
Mechanical suspension |
|
Tire |
12R22.5 Tubeless tire,13 including one spare tire |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
|
Landing leg |
JOST brand, two-speed, manual operating |
|
King Pin |
3.5 inch |
LPG semi trailer are combine with the following parts: LPG gas tank(made of Q345R steel plate),axles,wheel,support leg,traction pin,double outlet valve box( pressure gauge,thermometer,tightening valve,ball valve),iron water-proof board, safety valve,liquid level gauge,fire-extinguishing appliance,tool box,anti-static tape,spare tire rack,,plastic tire fender,etc.
LPG gas trailer tanks, LPG semi trailer tank, LPG tank semi-trailer is mainly used to transport LPG to Filling plant, LPG depot etc. we can provide 40CBM, 50CBM, 56CBM, 59.5CBM, 16MT, 21MT, 23MT and 25MT.
LPG Trailer as known as a Propane semi Trailer is mainly used to transport various liquefied gases, including liquid ammonia, propane, propylene, dimethyl ether, isobutyl fat, and butadiene.
LPG semi-trailer for transportation of natural gas, liquefied petroleum gas and chemical raw materials. High-quality domestic or imported safety accessories, carburetor and pump for the user matching, fully furnished.
The tanker can be ODM&OEM customized by our professional technician team with best solutions and free logo painting.
LPG semi trailer takes advantage of compression resistant tank for transporting the liquefied ,which is the special vehicles(For example propane, propylene, liquid ammonia, liquid nitrogen, liquid hydrogen, liquefied natural gas, liquid sulfur dioxide and so on) .
