DONGFENG 4x2 Light-duty 25m Concrete Pump Truck
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections. Strong power system reduced the rate of occurring faults.
Brand:
heritagetrucksolution.COMModel No.:
CLWHNTBC22-3MMinimum Order Quantity:
1 UnitPrice:
USD 88,400 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

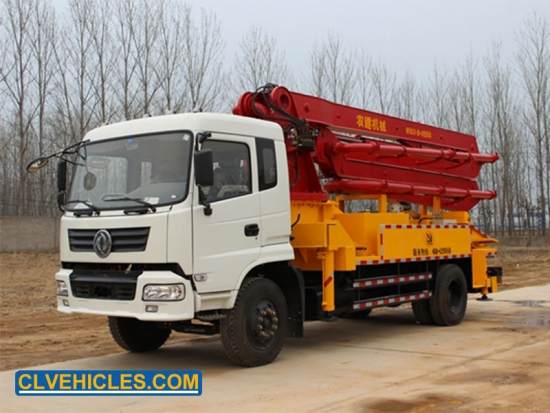

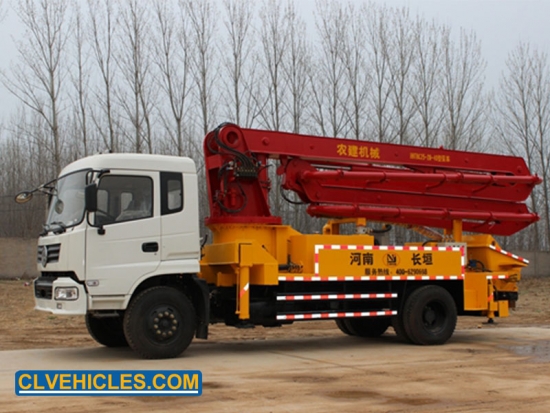

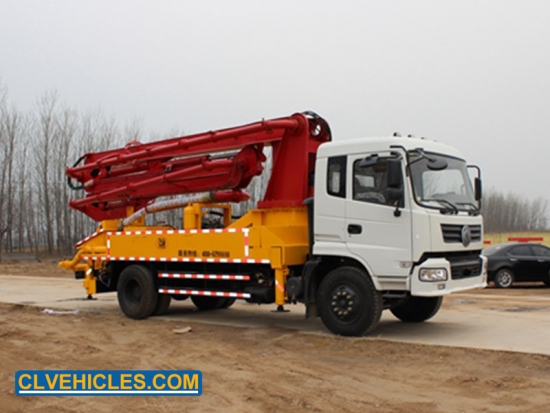

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDongfeng light-duty 18m concrete pump truck 4x2 truck-mounted concrete pump
Concrete boom pump, also called concrete pump truck, concrete boom pump truck, is extensively used to place concrete to hard-to-reach places accurately with controlled articulating robotic arm (boom) mounted on the truck.
Concrete boom truck is the ideal concrete machine to convey the heavy, viscous, abrasive and gravel mixed concrete along the discharge pipe to long distance with quick setup, high efficiency, excellent uptime.
Quick Details
10.5/8.5Mpa
Chassis brand
Dongfeng
Dimension of vehicle
9445x2300x3535mm
Gross weight of vehicle
15800kg
Placeing boom at Max. height/radius
18/15.1m
Ratating angle of each arm
90°/180°/180°
Max. Concrete outlet pressure
Conveying cylinder inner diameter/stroke
Φ200x1450mm
Feeding height
1450mm
Concrete distribution valve form
S tube
Applications
The concrete pump truck is a modern construction machinery that integrates the transportation of finished concrete and the pouring process, to continuously, uniformly and promptly convey the premixed concrete to the form-work.
The application of pump trucks and the superiority of the pumping process make the pump trucks widely used in the construction of large concrete structures such as:
1) high-rise and super-high-rise buildings;
2) underground and tunnel projects;
3) port docks and dam projects;
4) roads and bridges and culvert projects.
Competitive Advantage
A. The continuous working pumping system blocks the segregation of concrete, hence the slump of the concrete will not be amplified, which visibly guarantees the quality of the construction operation.
B. The concrete pump truck concurrently solves the horizontal and vertical transportation also, pouring problems of concrete with high mechanization required few labor. The construction organization is simple yet suitable for structural materials thanks to high compressive strength it occupies.
C. The concrete pump truck casting operation requires continuous operation, with high construction efficiency and fast operation progress. Additionally, the similarity of expansion coefficient of concrete and steel bar resulted in intensive bonding strength contributing to reinforced concrete with a wider application range.
D. The concrete pump truck posses strong adaptability to the construction work surface with wide range of operations, the pipeline can be laid to places that are difficult to reach by other equipment. The concrete pump truck can fill and cast the concrete in place under a certain pressure, and also can be used in series to increase the output distance required during construction.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
|
Preview |
Type |
Concrete Pump Truck |
|
||
|
Model |
CLWHNTBC22-3M |
|||||
|
Origin |
China |
|||||
|
Drive |
4×2 |
|||||
|
Height/Radius(Max.) |
22/18.1m |
|||||
|
Gross vehicle weight |
15,800kg |
|||||
|
Dimension |
9445×2300×3535mm |
|||||
|
PARAMETER |
||||||
|
A |
Vehicle |
|||||
|
1. |
Chassis |
Brand |
DONGFENG |
- |
||
|
Class |
Light-duty |
- |
||||
|
Wheel |
Left hand |
- |
||||
|
Steer |
Power-assisted |
- |
||||
|
Cabin |
2 Passengers |
- |
||||
|
Tyre |
9.00R20 16PR |
|
||||
|
Wheelbase |
4500 |
|
||||
|
Speed |
80 |
km/h |
||||
|
2. |
Engine |
Brand |
Cummins
|
- |
||
|
Manufacturer |
Dongfeng |
- |
||||
|
Model |
ISB180 40 |
- |
||||
|
Fuel |
Diesel |
- |
||||
|
Type |
Water cooling |
- |
||||
|
Intake |
Turbocharged |
- |
||||
|
Form |
Electronic control |
- |
||||
|
Cylinder (arrangement) |
6 (In-line) |
- |
||||
|
Displacement (standard) |
5900 (EURO IV) |
ml |
||||
|
Theoretical output |
180/132 |
hp/kw |
||||
|
Developed torque |
630 |
N·m |
||||
|
Rated Speed |
2500 |
rpm |
||||
|
Bore×stroke |
102×120 |
mm |
||||
|
B |
Bodywork |
|||||
|
3. |
Placing boom |
Folding form |
M-type |
- |
||
|
Number of boom |
3 |
- |
||||
|
Distribution valve |
S-type |
- |
||||
|
Conveyor boom height/radius |
18/15.1 |
m |
||||
|
Rotating angle of each arm |
90/180/180 |
° |
||||
|
Rotating angle of Turntable |
±360 |
° |
||||
|
End hose length |
3 |
m |
||||
|
Conveyor concrete pipe inner diameter |
125 |
mm |
||||
|
Conveyor cylinder inner diameter×stroke |
Φ200×1200 |
mm |
||||
|
Feeding height |
1450 |
mm |
||||
|
Aggregate size (Max.) |
40 |
mm |
||||
|
Hopper capacity |
650 |
L |
||||
|
4. |
Pumping system |
Theoretical Value |
Pressure limit |
High |
Low |
- |
|
Pumping pressure |
10.5 |
8.5 |
mpa |
|||
|
Pumping frequency |
18 |
26 |
min-1 |
|||
|
5. |
Hydraulic drive |
Lubrication methodology |
Centralized |
- |
||
|
Cooling methodology |
Air-cooled |
- |
||||
|
Cleaning methodology |
Water flush (Air/plunger pump) |
- |
||||
|
Hydraulic system structure |
Open loop |
- |
||||
|
Hydraulic system pressure |
31.5 |
mpa |
||||
|
Hydraulic oil tank |
400 |
L |
||||
|
Main oil pump displacement |
140 |
ml/r |
||||
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
The concrete pump truck is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology. More efficient rock valve pumping technology.
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.
The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly quality fully guaranteed the function of electrical controlling system.
It is suitable for housing, roads, canals, dams, tunnels, mines, railways, electricity, bridges, ports and other concrete delivery, with high efficiency, low cost, economical and practical.
