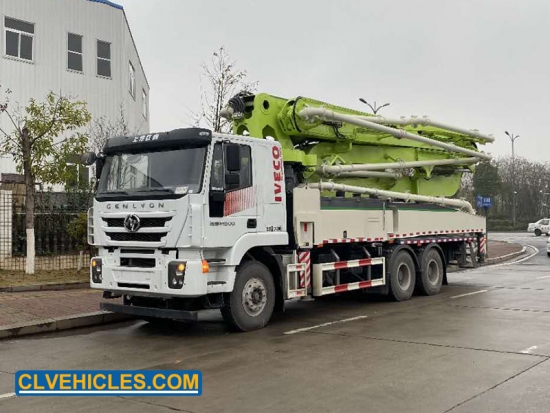

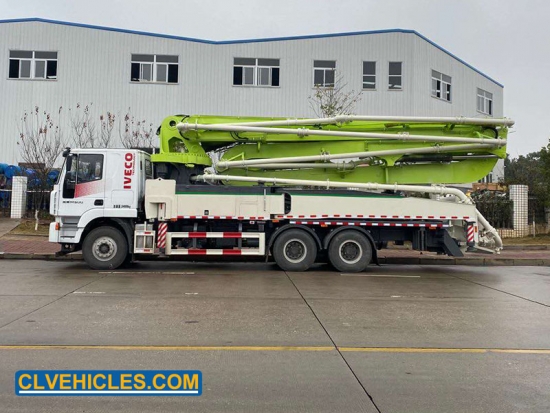

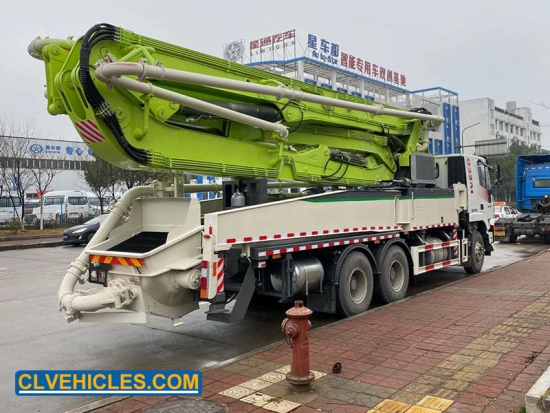

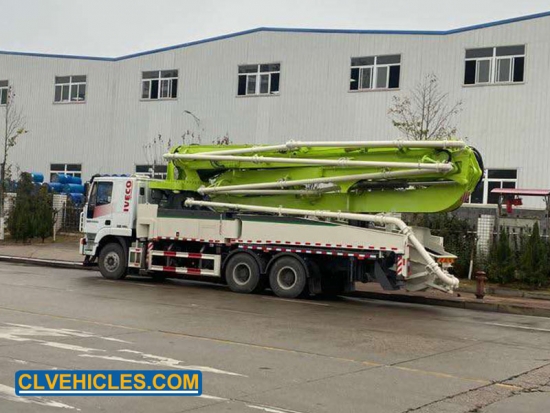

6x4 HONGYAN (SAIC-IVECO) 42m truck-mounted concrete pump
Our concrete pump trucks are competitive products. It is high reliability, high efficiency, high security, high durability, which reasonable matching on Chassis, power, electrical, hydraulics, pumping system, Jib structures are flexible, the trucks move easily, are safe and stable.
Quick Details
12/8Mpa
Chassis brand
HONHYAN(SAIC-IVECO)
Dimension of vehicle
11905x2500x3910mm
Gross weight of vehicle
34000kg
Placeing boom at Max. height
42m
Max. Theoretical
throughput (high/low pressure)
83/140Mpa
Max. Concrete outlet pressure
Conveying cylinder inner diameter/stroke
Φ260x1800mm
Feeding height
1450mm
Concrete distribution valve form
S tube
Applications
The concrete pump truck is a modern construction machinery that integrates the transportation of finished concrete and the pouring process, to continuously, uniformly and promptly convey the premixed concrete to the form-work.
The application of pump trucks and the superiority of the pumping process make the pump trucks widely used in the construction of large concrete structures such as:
1) high-rise and super-high-rise buildings;
2) underground and tunnel projects;
3) port docks and dam projects;
4) roads and bridges and culvert projects.
Competitive Advantage
A. The continuous working pumping system blocks the segregation of concrete, hence the slump of the concrete will not be amplified, which visibly guarantees the quality of the construction operation.
B. The concrete pump truck concurrently solves the horizontal and vertical transportation also, pouring problems of concrete with high mechanization required few labor. The construction organization is simple yet suitable for structural materials thanks to high compressive strength it occupies.
C. The concrete pump truck casting operation requires continuous operation, with high construction efficiency and fast operation progress. Additionally, the similarity of expansion coefficient of concrete and steel bar resulted in intensive bonding strength contributing to reinforced concrete with a wider application range.
D. The concrete pump truck posses strong adaptability to the construction work surface with wide range of operations, the pipeline can be laid to places that are difficult to reach by other equipment. The concrete pump truck can fill and cast the concrete in place under a certain pressure, and also can be used in series to increase the output distance required during construction.

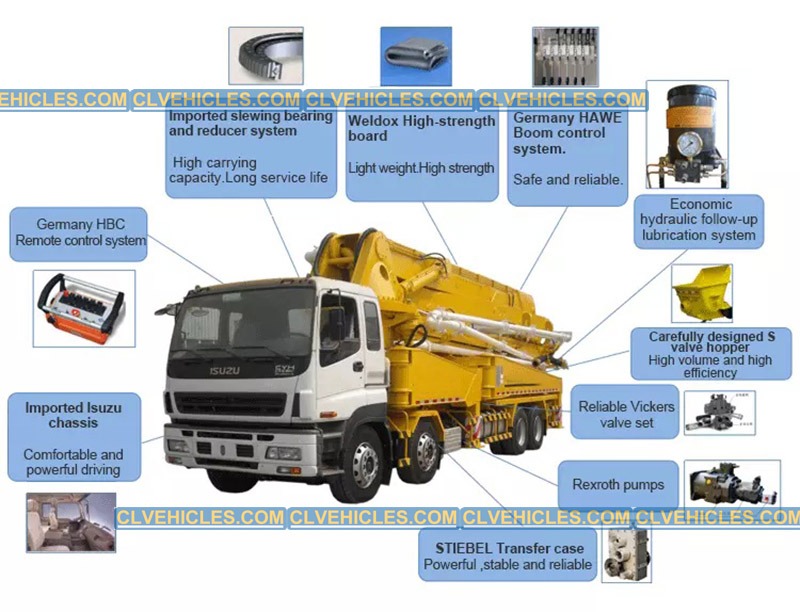

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Preview |
Type |
Concrete Pump Truck |
|||||
|
Origin |
China |
||||||
|
Model |
CLW5331THB44X-5RZ |
||||||
|
Drive |
6x4 |
||||||
|
Height (Max.) |
42 |
||||||
|
Vehicle dimension |
11905×2500×3910mm |
||||||
|
Gross vehicle weight |
34,000kg |
||||||
|
PARAMETER |
|||||||
|
A |
Vehicle |
||||||
|
1. |
Chassis |
Brand (series) |
HONGYAN(SAIC-IVECO) |
- |
|||
|
Class |
Heavy-duty |
- |
|||||
|
Wheel |
Left-hand |
- |
|||||
|
Steer |
Power-assisted |
- |
|||||
|
Leaf spring |
9/12 |
|
|||||
|
Wheelbase |
4700+1400 |
mm |
|||||
|
Speed at Full/Empty Load |
80/100 |
km/h |
|||||
|
Accumulator battery |
24 |
V |
|||||
|
2. |
Engine |
Model |
F2CCE611A*L |
- |
|||
|
Fuel |
Diesel |
- |
|||||
|
Type |
Water cooling |
- |
|||||
|
Intake |
Turbocharged |
- |
|||||
|
Cylinder (Arrangement) |
6 (In-line) |
- |
|||||
|
Displacement (Standard) |
8709 (Euro V) |
ml |
|||||
|
Developed Power |
390 |
hp |
|||||
|
Theoretical output |
287 |
kw |
|||||
|
3. |
Cabin |
Layout |
2 Passengers + 1 Single berth |
- |
|||
|
Facility |
Air conditioner |
||||||
|
4. |
Axle |
Loading (Front/rear) |
8000/26000 (Two-axis group) |
kg |
|||
|
Quantity |
3 |
- |
|||||
|
5. |
Tyre |
Specification |
12.00R20 |
- |
|||
|
Quantity |
10 |
||||||
|
Type |
STEEL-type |
||||||
|
6. |
Brake |
Type |
Air brake |
- |
|||
|
Auxiliary |
ABS |
||||||
|
7. |
Transmission |
Gear |
12JSD180T |
- |
|||
|
Speed |
12 Forward/2 Reverse |
||||||
|
B |
Bodywork |
||||||
|
8. |
Placing boom |
Structure |
44-5RZ |
- |
|||
|
Max. Height |
44 |
m |
|||||
|
Max. Depth |
33 |
m |
|||||
|
Max. Radius |
40 |
m |
|||||
|
Slewing angle |
±270 |
° |
|||||
|
Feeding height |
1300 |
mm |
|||||
|
End hose length |
3 |
m |
|||||
|
Max. Aggregate size |
400 |
mm |
|||||
|
Concrete cylinder inner diameter×stroke |
Φ260×1800 |
mm |
|||||
|
Cleaning methodology |
Air or plunger pump |
- |
|||||
|
9. |
Pumping system |
Theoretical value limit to pressure |
High |
Low |
- |
||
|
A.Pumping displacement |
83 |
140 |
m3/h |
||||
|
B.Pumping frequency |
23 |
39 |
min-1 |
||||
|
C.Pumping pressure |
12 |
8 |
mpa |
||||
|
10. |
Hydraulic drive |
Hydraulic oil cooling |
Air-cooled |
- |
|||
|
Lubrication methodology |
Manual & Hydraulic |
||||||
|
11. |
Controlling |
High/low pressure switch-over |
Automatic & electronic |
- |
|||
|
Displacement control |
Electric displacement |
||||||
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections. Strong power system reduced the rate of occurring faults.
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
The concrete pump truck is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology. More efficient rock valve pumping technology.
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.
The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly quality fully guaranteed the function of electrical controlling system.
