DONGFENG 4x2 Light-duty 30m Concrete Pump Truck
The concrete pump truck is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly quality fully guaranteed the function of electrical controlling system.
Brand:
heritagetrucksolution.COMModel No.:
CLW5190THB-38M6Minimum Order Quantity:
1 UnitPrice:
USD 154,490 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

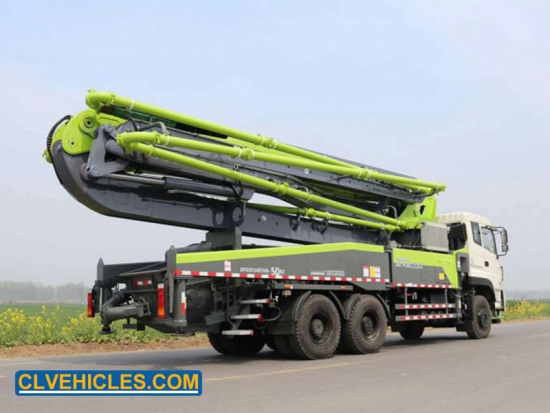

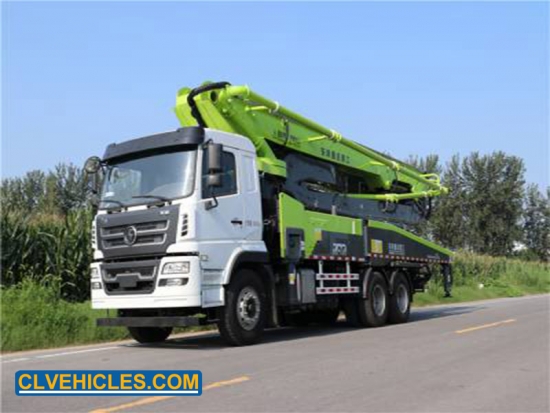

6x4 SHACMAN 38m truck-mounted concrete pump

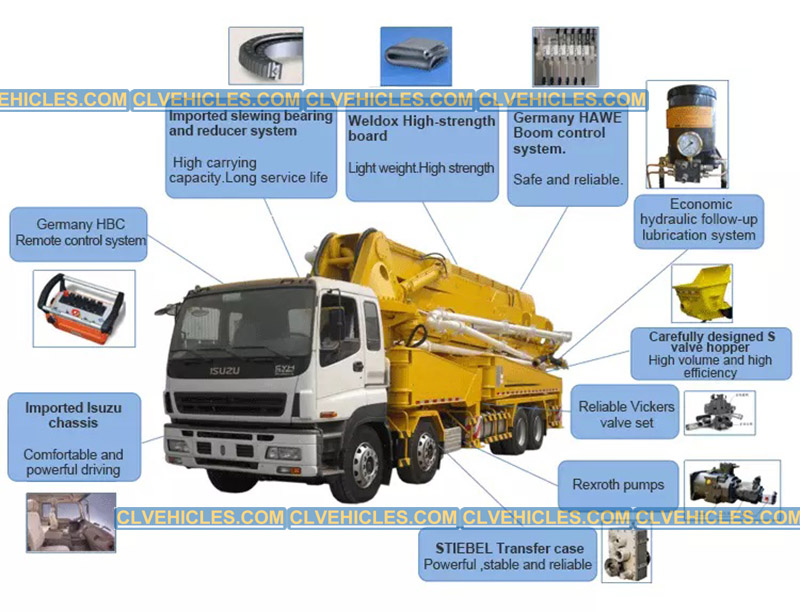

The concrete pump truck is reformed on the chassis of the truck. It is equipped with motion and power transmission device, pumping and mixing device, material distribution device and other auxiliary devices on the chassis. The power of the concrete pump truck is transmitted to the hydraulic pump group or the rear axle through the power transfer box. The hydraulic pump drives the piston to drive the concrete pump. Then, the concrete can be conveyed to a certain height and distance by using the cloth pole and the conveying pipe on the pump car.
Quick Details
|
Chassis brand |
SHACMAN |
| Dimension of vehicle | 10650x2500x3820mm |
| Gross weight of vehicle | 27000kg |
|
Placeing boom at Max. height/depth/radius |
38/22/33.4m |
|
Ratating angle of each arm |
90°/180°/235°/180/180° |
| Max. Theoretical throughput (high/low pressure) | 50/80Mpa |
|
Max. Concrete outlet pressure |
12/7Mpa |
| Conveying cylinder inner diameter/stroke |
Φ230x1650mm |
|
Feeding height |
1380mm |
| Concrete distribution valve form | S tube |

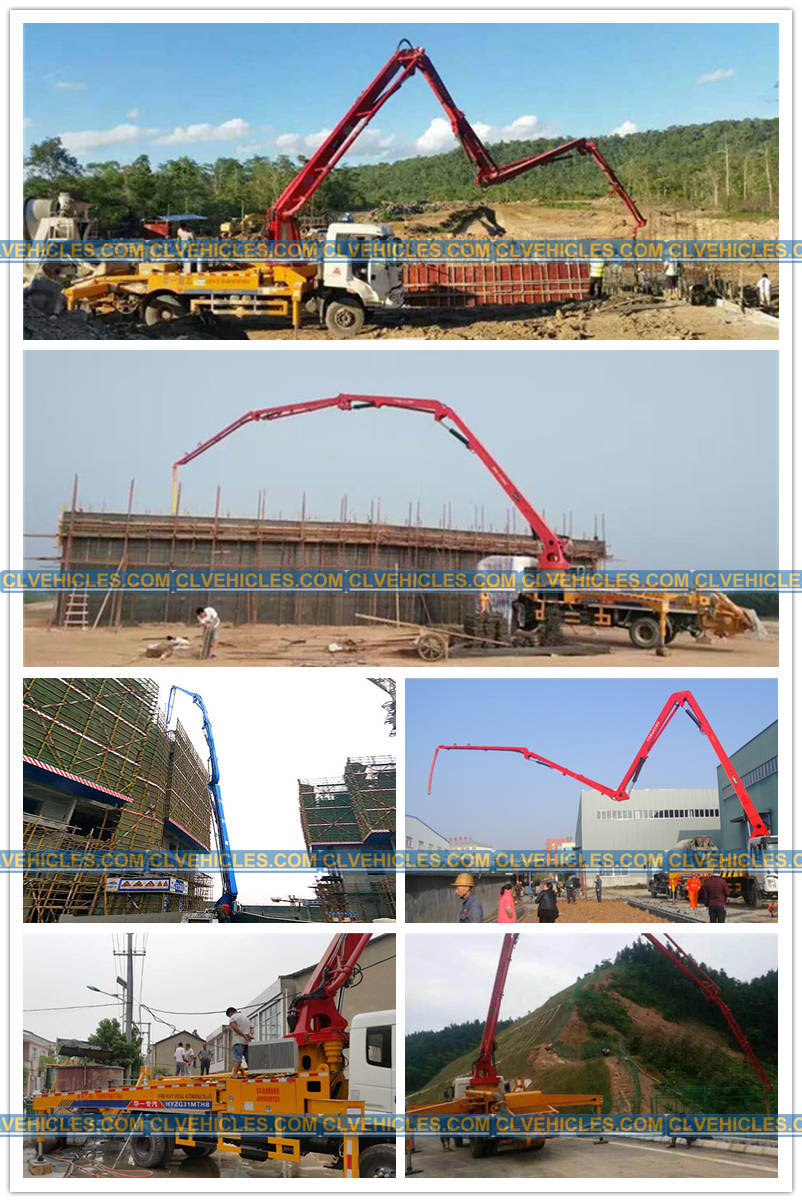

Applications
The concrete pump truck is a modern construction machinery that integrates the transportation of finished concrete and the pouring process, to continuously, uniformly and promptly convey the premixed concrete to the form-work.
The application of pump trucks and the superiority of the pumping process make the pump trucks widely used in the construction of large concrete structures such as:
1) high-rise and super-high-rise buildings;
2) underground and tunnel projects;
3) port docks and dam projects;
4) roads and bridges and culvert projects.
Competitive Advantage
A. The continuous working pumping system blocks the segregation of concrete, hence the slump of the concrete will not be amplified, which visibly guarantees the quality of the construction operation.
B. The concrete pump truck concurrently solves the horizontal and vertical transportation also, pouring problems of concrete with high mechanization required few labor. The construction organization is simple yet suitable for structural materials thanks to high compressive strength it occupies.
C. The concrete pump truck casting operation requires continuous operation, with high construction efficiency and fast operation progress. Additionally, the similarity of expansion coefficient of concrete and steel bar resulted in intensive bonding strength contributing to reinforced concrete with a wider application range.
D. The concrete pump truck posses strong adaptability to the construction work surface with wide range of operations, the pipeline can be laid to places that are difficult to reach by other equipment. The concrete pump truck can fill and cast the concrete in place under a certain pressure, and also can be used in series to increase the output distance required during construction.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck According to your request, choose good chassis and refit it to truck.
Upper Body design function parts.
Customization
Spare Parts on trucks as tank and box. |
 |
Product Parameters
|
Preview |
Type |
Concrete Pump Truck |
||||
|
Origin |
China |
|||||
|
Model |
CLW5190THB-38M5 |
|||||
|
Drive |
4x2 |
|||||
|
Height/Depth/Radius (Max.) |
38/22/33.4m |
|||||
|
Vehicle dimension |
10650×2500×3820mm |
|||||
|
Gross vehicle weight |
27,000kg |
|||||
|
PARAMETER |
||||||
|
A |
Vehicle |
|||||
|
1. |
Chassis |
Brand |
SHACMAN |
- |
||
|
Class |
Heavy-duty |
- |
||||
|
Wheel |
Left-hand |
- |
||||
|
Steer |
Power-assisted |
- |
||||
|
Wheelbase |
4000+1350 |
mm |
||||
|
Speed |
80 |
km/h |
||||
|
Accumulator Battery |
24 |
V |
||||
|
2. |
Engine |
Model |
WP10.336 |
- |
||
|
Fuel |
Diesel |
- |
||||
|
Type |
Water cooling |
- |
||||
|
Intake |
Turbocharged |
- |
||||
|
Cylinder (Arrangement) |
6 (In-line) |
- |
||||
|
Displacement (Standard) |
9726 (Euro III) |
ml |
||||
|
Max. Theoretical output |
336/247 |
hp/kw |
||||
|
Developed torque |
1500 |
N·m |
||||
|
Rated speed |
1900 |
rpm |
||||
|
3. |
Cabin |
Layout |
2 Passenger |
- |
||
|
Air conditioner |
Standard |
|||||
|
4. |
Axle |
Loading (Front/rear) |
7500/16000 |
kg |
||
|
Quantity |
3 |
- |
||||
|
5. |
Tyre |
Specification |
12.00R20 |
- |
||
|
Quantity |
10 |
|||||
|
Type |
STEEL-type |
|||||
|
6. |
Brake |
Type |
Air brake |
- |
||
|
Element |
ABS |
|||||
|
7. |
Transmission |
Gear |
9JS135 |
- |
||
|
Type |
9 Forward / 1 Reverse |
|||||
The concrete pump truck is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology. More efficient rock valve pumping technology.
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.
It is suitable for housing, roads, canals, dams, tunnels, mines, railways, electricity, bridges, ports and other concrete delivery, with high efficiency, low cost, economical and practical.

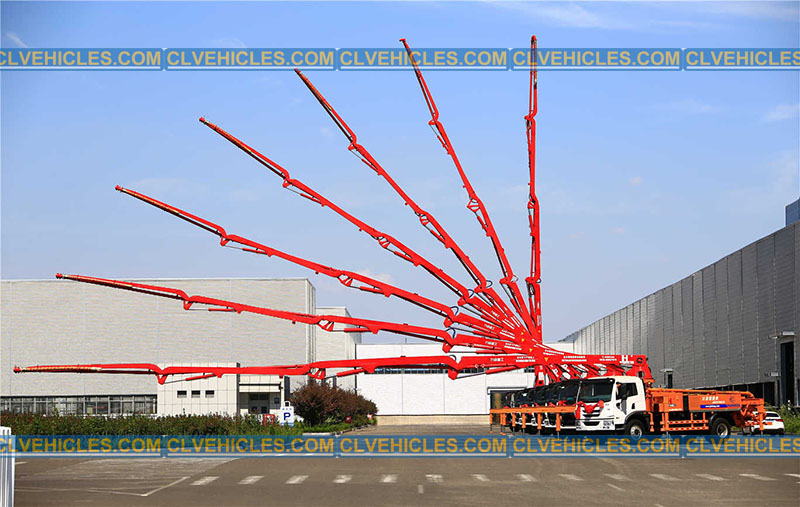

The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections. Strong power system reduced the rate of occurring faults.
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
The concrete pump truck is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology. More efficient rock valve pumping technology.
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.
It is suitable for housing, roads, canals, dams, tunnels, mines, railways, electricity, bridges, ports and other concrete delivery, with high efficiency, low cost, economical and practical.
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections. Strong power system reduced the rate of occurring faults.
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
The concrete pump truck is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology. More efficient rock valve pumping technology.
