This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Brand:
heritagetrucksolution.COMModel No.:
CL5160TSLD5Minimum Order Quantity:
1 UnitPrice:
USD48000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDongFeng KINGRUN KR Road Regenerative Air Street Sweeper

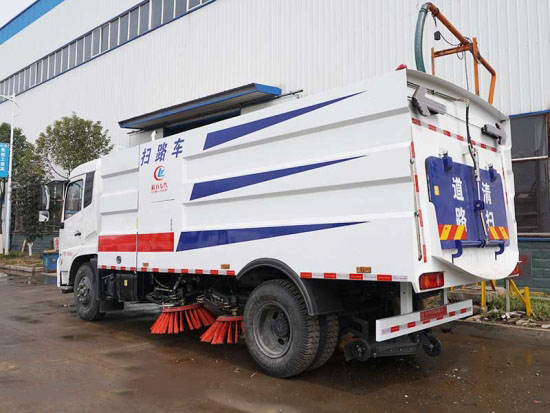

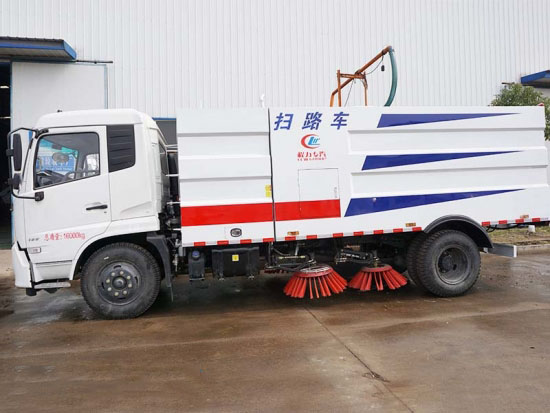

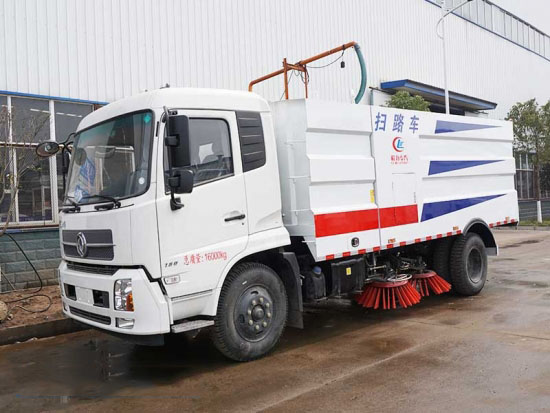

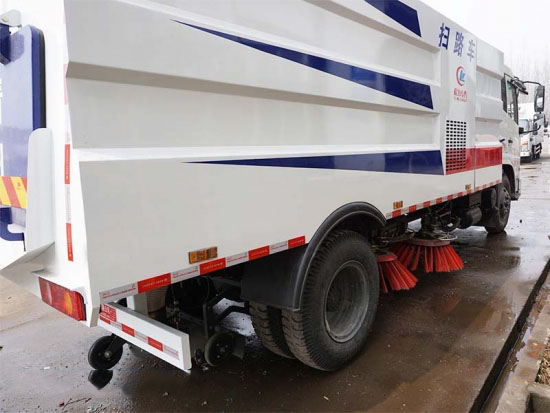

heritagetrucksolution.COM sweeper truck integrates sweeping, cleaning and vacuuming. In addition, it can be used for both wet and dry purposes,equivalent to clean sweeping vehicles and vacuum vehicles.The main clients are coal-fired power plants, steel plants and cement plants.It withstands the test of the market,become the most cost-performance vacuum sweeper truck on the market.
Quick Details
| Product name |
Road sweeper truck |
|
Water Tank Capacity |
3800L |
|
Garbage Tank Capacity |
8000L |
|
Chassis Brand |
DONGFENG |
|
Horsepower |
190hp |
|
Sweeping Width |
3.2m |
|
High Pressure Cleaning Width |
3.5m |
|
High Pressure Cleaning Speed |
3-20Km/h |
|
Maximum Cleaning Capacity |
70000M2/h |
|
Clean efficiency |
≥ 95% |
|
Maximum Suction Size |
120mm |
Applications

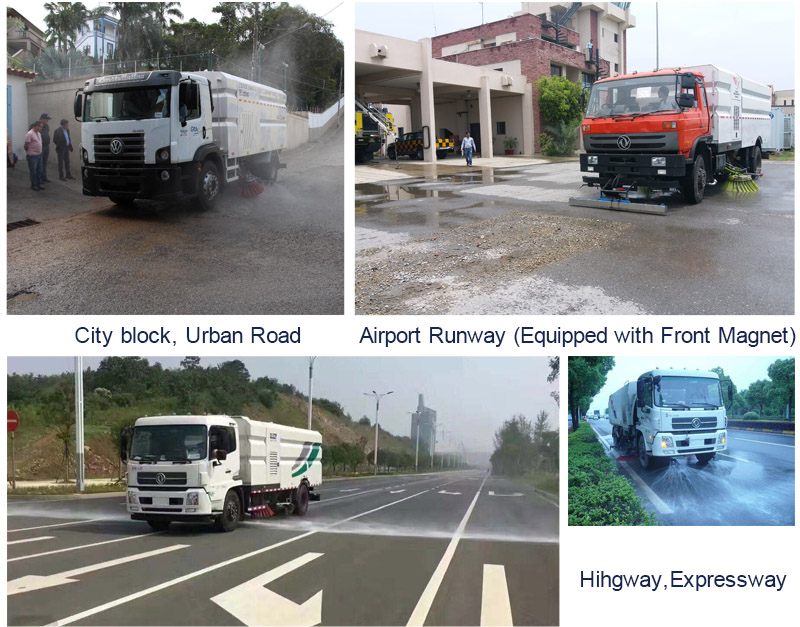

Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.

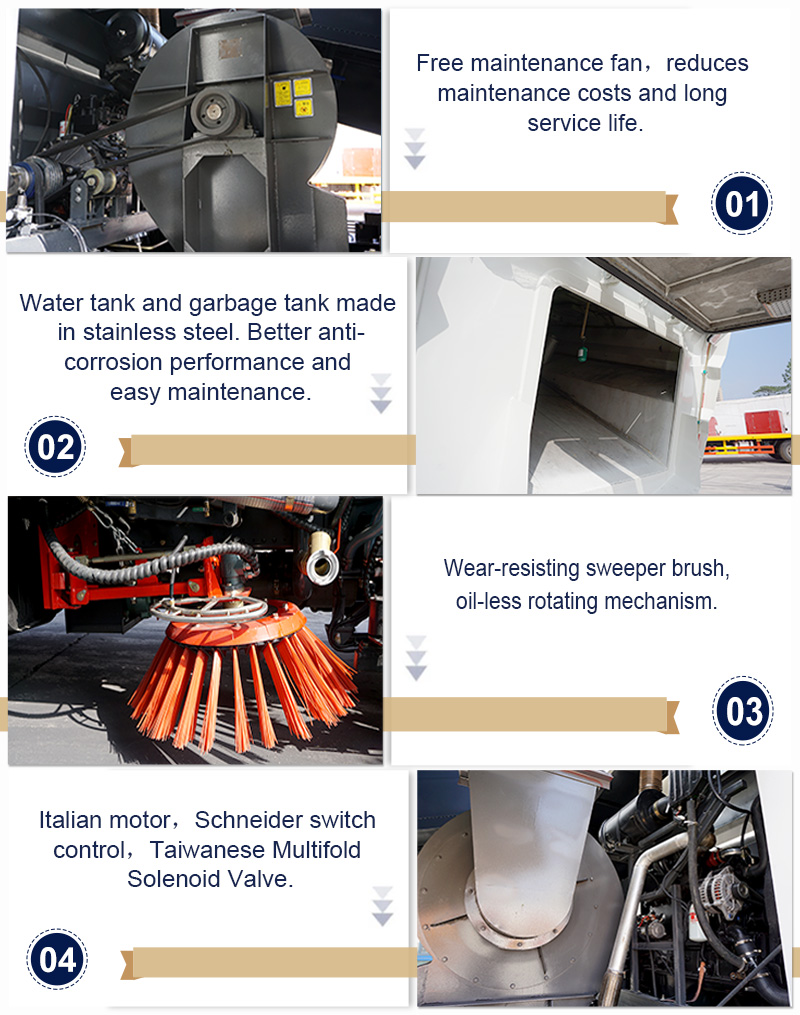

1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.
3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.
4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.
5.It is with ISUZU chassis ,perfect performance!
Customer Services
|
Vehicle performance and parameters |
|||
|
Item |
Parameter |
Unit |
|
|
Working Performance |
Max sweep width |
3.5 |
m |
|
Low pressure flushing width |
24 |
m |
|
|
Sweep speed |
3—20 |
km/h |
|
|
Max sweep capacity |
70000 |
m2/h |
|
|
Max inhalation of granularity |
≥110 |
mm |
|
|
Angle of unloading |
≥48 |
。 |
|
|
Volume of water tank |
3800 |
L |
|
|
Volume of garbage tank |
8000 |
L |
|
|
Driving Performance |
Max speed |
98 |
km/h |
|
Max gradeability |
30 |
% |
|
|
Braking distance |
≤10 |
m |
|
|
Min turning diameter |
≤13.6 |
m |
|
|
Fuel Performance |
Fuel consumption(Driving) |
≤12 |
L/100km |
|
Fuel consumption(Sweep working at 8km/h) |
6.5 |
L/h |
|
|
2.7 |
L/10000m2 |
||
|
Quality Parameters |
Curb weight |
11070 |
kg |
|
Rated capacity |
4535 |
kg |
|
|
GVW |
15800 |
kg |
|
|
Dimension Parameter |
Overall dimensions |
8300*2500*3060 |
mm |
|
Wheelbase |
4700 |
mm |
|
|
Track front |
1800 |
mm |
|
|
Track rear |
1800 |
mm |
|
|
Front suspension |
1430 |
mm |
|
|
Rear suspension |
2070 |
mm |
|
|
Approach angle |
24 |
。 |
|
|
Departure angle |
15 |
。 |
|
|
Main parts and parameters |
||
|
Chassis |
Chassis model |
DFL1160 |
|
Engine model |
B190-33 | |
|
Engine power |
140kw/ 190hp |
|
|
Clutch system |
single disc, dry type, diaphragm spring clutch |
|
|
Gearbox |
8 speed |
|
|
Driving axle |
6000/10000kg |
|
|
Cabin |
DONGFENG one and half row cabin, with A/C |
|
|
Tire |
10.00-20 |
|
|
Vice-fan Engine |
Brand |
CUMMINS |
|
Rated power |
103 kw/140hp |
|
|
Fuel type |
Diesel, share with chassis fuel tank |
|
|
Draught Fan |
Type |
high pressure centrifugal specialized draught fan |
|
Rated speed |
2600—2900r/min |
|
|
Actuator type |
Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission |
|
|
Hydraulic System |
Type |
open type and electrohydraulic control system |
|
Main part |
gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump |
|
|
Hydraulic relief pressure |
15Mpa |
|
|
Hydraulic oil tank |
60L |
|
|
Spray Watering |
Main part |
electric water pump, water filtration system, spray nozzle, water tank |
|
Electric System |
Composition |
Madeof chassis electric system and vice-fan engine with other work operating system |
|
Systemvoltage |
12V |
|
|
Battery model |
12-80A.H |
|
|

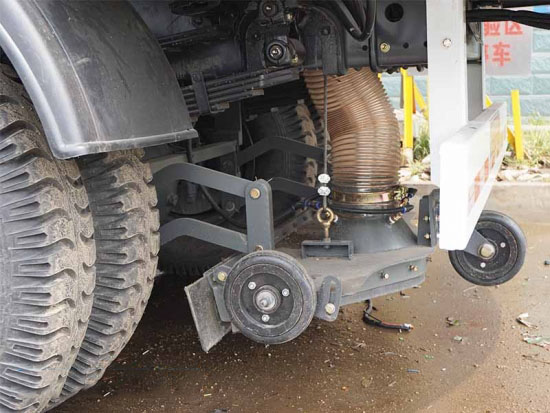

Suction Nozzle |
Type |
U-shaped, Free to move |
|
Diameter |
f200mm |
|
|
Ground clearance in working |
5—10mm |
|
|
Accessories |
LED arrows lamp Schneider Control switch Draught fan（maintenance-free） Manual pump emergency system |
|
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Road sweep truck, as one of the sanitation equipment, is a collection of road surface cleaning, garbage collection and transportation as one of the new efficient cleaning equipment
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Sweeper truck equipped with auxiliary engine and The cleaning system provides power from the auxiliary engine and does not interfere with the whole vehicle power.
