This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Brand:
heritagetrucksolution.COMModel No.:
CL5081TSLF2Minimum Order Quantity:
1 UnitPrice:
USD34000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

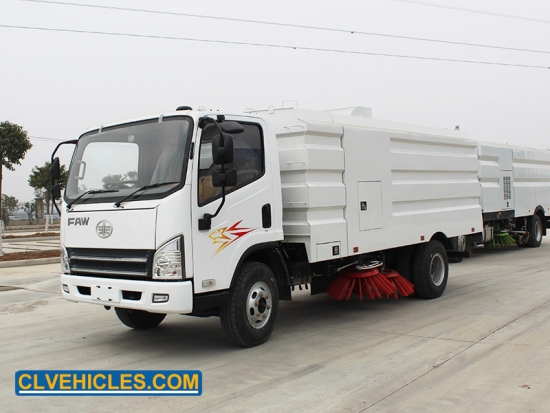

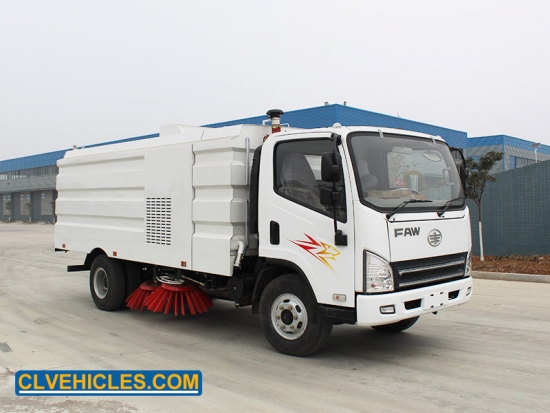

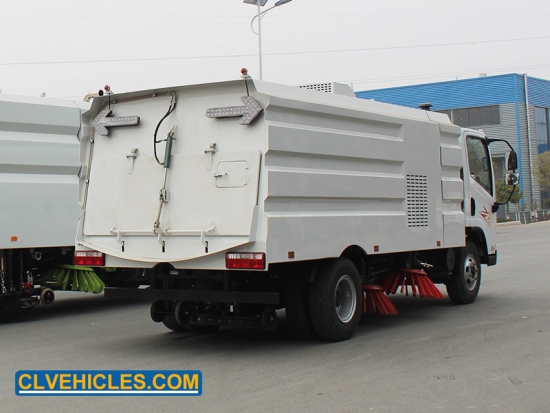

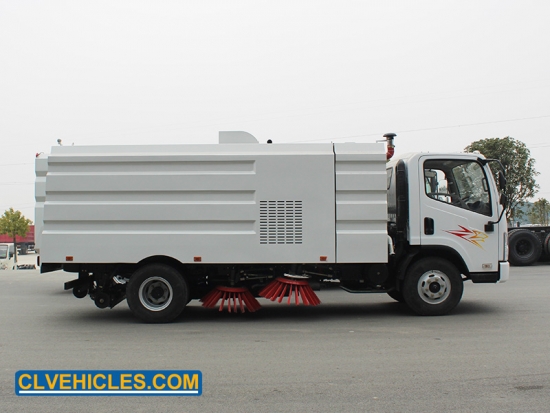

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcFAW RHD Road Sweep Truck Mounted Sweeping Machines
Street cleaning truck is specially used in road cleaning and collecting rubbish and transporting them to garbage collection spot.You can see this vehicle on the main street,central park,airport and some other places.As one of the city sanitary equipment,it functions efficiently and makes our city and environment clean and pretty good.
Quick Details
| Product name |
Road sweeper truck |
|
Water Tank Capacity |
2000L |
|
Garbage Tank Capacity |
6000L |
|
Chassis Brand |
FAW |
|
Horsepower |
130hp |
|
Sweeping Width |
3.2m |
|
High Pressure Cleaning Width |
3.5m |
|
High Pressure Cleaning Speed |
3-20Km/h |
|
Maximum Cleaning Capacity |
60000M2/h |
|
Clean efficiency |
≥ 95% |
|
Maximum Suction Size |
120mm |
Applications
Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.
3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.
4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.
5.It is with ISUZU chassis ,perfect performance!
Other Types of Road Washing Truck:
Water Tank: 12000 L Water Tank: 9000 L
Garbage Tank: 10000 L Garbage Tank: 7000 L
Customer Services
|
Truck Specification |
||
|
Chassis model |
CL5081TSLF2 |
|
|
Cab |
FAW HV single cab, with power steering. Electronic flameout，with a/c |
|
|
Driving Type |
4*2 Right hand driving |
|
|
Max Speed (km/h) |
97 |
|
|
Overall dimension（mm） |
6800*2230*2550 |
|
|
GVW（ kg） |
6000 |
|
|
Mass in working order（ kg） |
10000 |
|
|
Wheelbase（mm） |
3860 |
|
|
Tire |
8.25R16 (6+1) |
|
|
Clutch |
Single-plate 330mm |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
6-speed 6T115 |
|
|
Bridge |
Front axle |
2900KG |
|
Rear axle |
7000KG |
|
|
Enging |
Model |
YC4D130-33 Euro2 |
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Max output power/rotate speed (hp /rpm ) |
130/2800 |
|
|
Max torque/rotate speed(N.m/rpm) |
380/1400-1700 |
|
|
Braking System |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Eletric system |
24v |
|
|
Upper-Body specification |
||
|
Vice generator |
||
|
Model |
JE493-G3 |
|
|
Rated power (kw) |
57KW |
|
|
Suction sweep operation |
||
|
Cleaning efficiency |
≥95% |
|
|
The maximum diameter of the suction body(mm) |
110 |
|
|
Suction sweep width(mm) |
2.8-3.2 |
|
|
Maximum cleaning power （m3/h） |
60000 |
|
|
Butterfly dish brush overhang dimension(mm) |
≥400 |
|
|
Working speed (km/h) |
3-20 |
|
|
Water tank body |
||
|
Rated capacity （m3） |
2 |
|
|
Material |
Stainless steel |
|
|
Garbage tank body |
|
|
|
Rated capacity（m3） |
6 |
|
|
Material |
Stainless steel |
|
|
Discharge door opening angle |
≥46º |
|
|
Hydraulic system |
||
|
Model |
Open, electrical control |
|
|
The main element |
Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve |
|
|
Pressure (mpa) |
16 |
|
|
Hydraulic oil tank capacity (l) |
60 |
|
|
Hydraulic oil temperature (ºC) |
60 |
|
|
Electrical system |
||
|
Model |
DC24V |
|
|
voltage |
24V |
|
|
Battery |
24V（2 set 12 v battery seriesconnection ） |
|
|
Sprinkle system |
||
|
The main elements |
Electric diaphragm pump, water filters, nozzles, etc. |
|
|
Sweeper disk device |
||
|
Model |
Center twosweeper disk,controlled bya hydraulic motor, front right can be independently controlled with avoidance and reset function |
|
|
Diameter (mm) |
850 |
|
|
Angel |
Forward 4-6º roll 4-7º |
|
|
Sucker device |
||
|
Model |
single suction port, hydraulically controlled, spring suspension. |
|
|
Diameter (mm) |
200 |
|
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Road sweep truck, as one of the sanitation equipment, is a collection of road surface cleaning, garbage collection and transportation as one of the new efficient cleaning equipment
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
The unique stainless steel tank body is precise and corrosion resistant. Independent water tank and integrated water tank is set for the complete vehicle; the working hours are large after the tank is flled with water, which can meet the long-distance operation needs.
Sweeper truck equipped with auxiliary engine and The cleaning system provides power from the auxiliary engine and does not interfere with the whole vehicle power.
