Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcIsuzu 100P vacuum powered sweeper truck

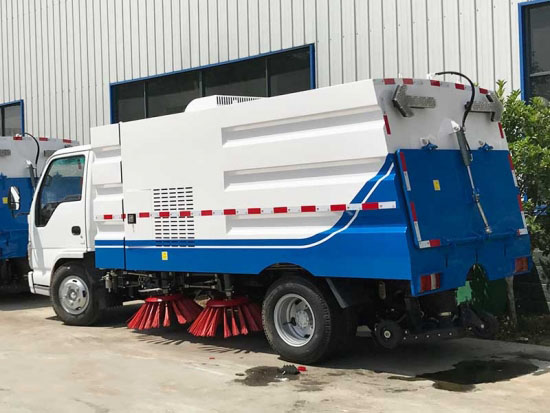

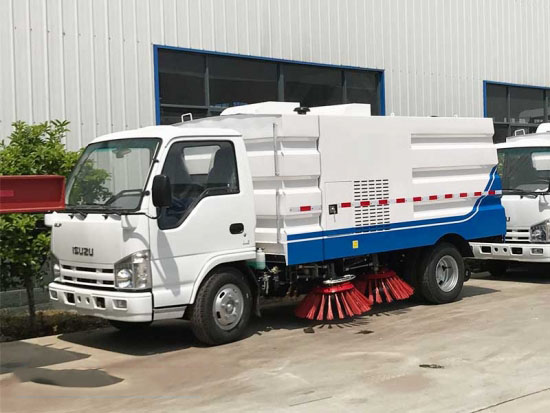

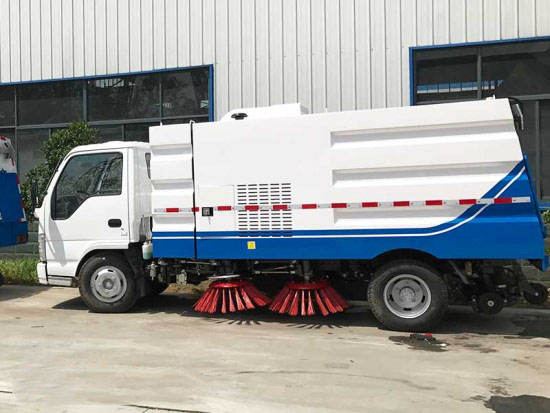

Street cleaning truck like Isuzu 100P vacuum powered sweeper truck is specially used in road cleaning and collecting rubbish and transporting them to garbage collection spot.You can see this vehicle on the main street,central park,airport and some other places.As one of the city sanitary equipment,it functions efficiently and makes our city and environment clean and pretty good. More road sweeper truck for your needs.
Quick Details
| Product name |
Road sweeper truck |
|
Water Tank Capacity |
1000L |
|
Garbage Tank Capacity |
4000L |
|
Chassis Brand |
ISUZU 100P |
|
Horsepower |
90hp |
|
Sweeping Width |
3.2m |
|
High Pressure Cleaning Width |
3.5m |
|
High Pressure Cleaning Speed |
3-20Km/h |
|
Maximum Cleaning Capacity |
60000M2/h |
|
Clean efficiency |
≥ 95% |
|
Maximum Suction Size |
120mm |
Applications

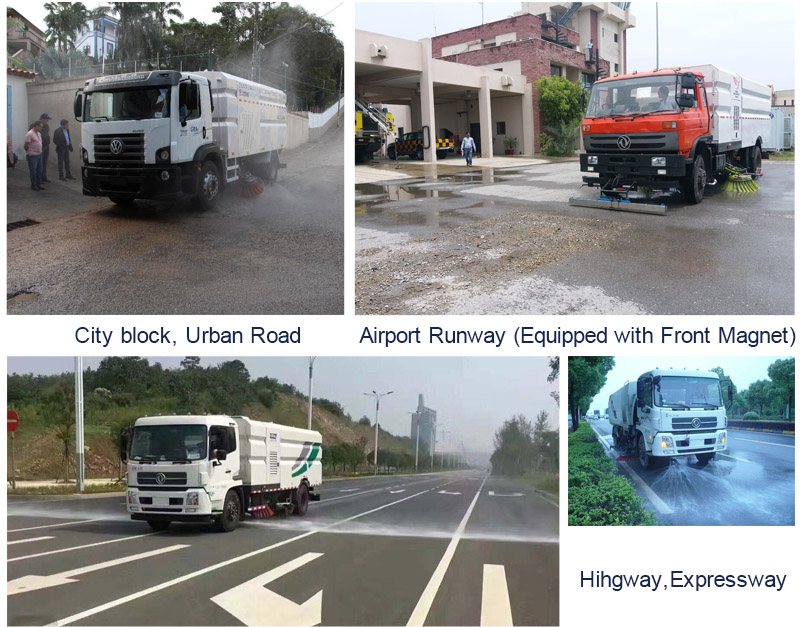

Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.
3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.
4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.
5.It is with ISUZU chassis ,perfect performance!
|
|
|
|

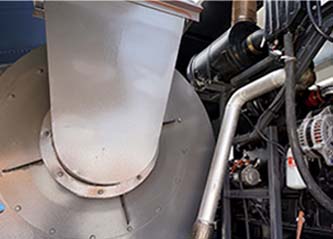

Free maintenance fan,reduces maintenance costs and long service life. |
Water tank and garbage tank made in stainless steel. Better anti-corrosion performance and easy maintenance. |
|
|
|
|

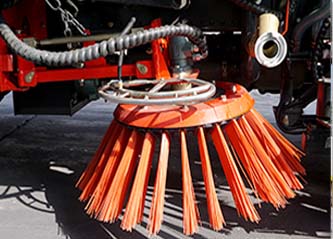

Wear-resisting sweeper brush,oil-less rotating mechanism. |
Italian motor, Schneider switch control,Taiwanese Multifold solenoid valve. |

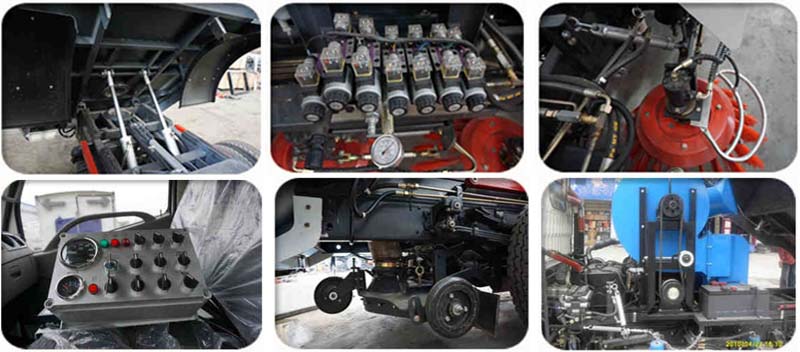

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Boddy
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Suppy only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
|
Vehicle performance and parameters |
|||
|
Item |
Parameter |
Unit |
|
|
Working Performance |
Max sweep width |
3.5 |
m |
|
Low pressure flushing width |
24 |
m |
|
|
Sweep speed |
3—20 |
km/h |
|
|
Max sweep capacity |
60000 |
m2/h |
|
|
Max inhalation of granularity |
≥110 |
mm |
|
|
Angle of unloading |
≥48 |
。 |
|
|
Volume of water tank |
1000 |
L |
|
|
Volume of garbage tank |
4000 |
L |
|
|
Driving Performance |
Max speed |
98 |
km/h |
|
Max gradeability |
30 |
% |
|
|
Braking distance |
≤10 |
m |
|
|
Min turning diameter |
≤13.6 |
m |
|
|
Fuel Performance |
Fuel consumption(Driving) |
≤12 |
L/100km |
|
Fuel consumption(Sweep working at 8km/h) |
6.5 |
L/h |
|
|
2.7 |
L/10000m2 |
||
|
Quality Parameters |
Curb weight |
4600 |
kg |
|
Rated capacity |
4255 |
kg |
|
|
GVW |
5800 |
kg |
|
|
Dimension Parameter |
Overall dimensions |
5650*2000*2350 |
mm |
|
Wheelbase |
3360 |
mm |
|
|
Track front |
1385 |
mm |
|
|
Track rear |
1425 |
mm |
|
|
Front suspension |
1015 |
mm |
|
|
Rear suspension |
1275 |
mm |
|
|
Approach angle |
24 |
。 |
|
|
Departure angle |
15 |
。 |
|
|
Main parts and parameters |
||
|
Chassis |
Chassis model |
QL1040 |
|
Engine model |
4JB1CN |
|
|
Engine power |
66kw/ 90hp |
|
|
Clutch system |
single disc, dry type, diaphragm spring clutch |
|
|
Gearbox |
5speed +1reverse |
|
|
Driving axle |
2.5T/4.8T |
|
|
Cabin |
ISUZU single row, with A/C |
|
|
Tire |
7.00-16 |
|
|
Vice-fan Engine |
Brand |
JMC |
|
Rated power |
64 kw/78hp |
|
|
Fuel type |
Diesel, share with chassis fuel tank |
|
|

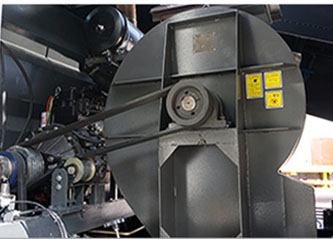

Draught Fan |
Type |
high pressure centrifugal specialized draught fan |
|
Rated speed |
2600—2900r/min |
|
|
Actuator type |
Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission |
|
|
Hydraulic System |
Type |
open type and electrohydraulic control system |
|
Main part |
gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump |
|
|
Hydraulic relief pressure |
15Mpa |
|
|
Hydraulic oil tank |
60L |
|
|
Spray Watering |
Main part |
electric water pump, water filtration system, spray nozzle, water tank |
|
Electric System |
Composition |
Madeof chassis electric system and vice-fan engine with other work operating system |
|
Systemvoltage |
12V |
|
|
Battery model |
12-80A.H |
|
|
Suction Nozzle |
Type |
U-shaped, Free to move |
|
Diameter |
f200mm |
|
|
Ground clearance in working |
5—10mm |
|
|
Accessories |
LED arrows lamp Schneider Control switch Draught fan（maintenance-free） Manual pump emergency system |
|
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Road sweep truck, as one of the sanitation equipment, is a collection of road surface cleaning, garbage collection and transportation as one of the new efficient cleaning equipment
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.

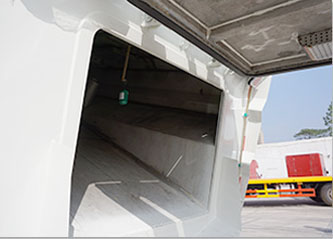

The unique stainless steel tank body is precise and corrosion resistant. Independent water tank and integrated water tank is set for the complete vehicle; the working hours are large after the tank is flled with water, which can meet the long-distance operation needs.
Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
Sweeper truck equipped with auxiliary engine and The cleaning system provides power from the auxiliary engine and does not interfere with the whole vehicle power.
