Brand:
heritagetrucksolution.COMModel No.:
CL5312JSQDMinimum Order Quantity:
1 UnitPrice:
USD 81000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

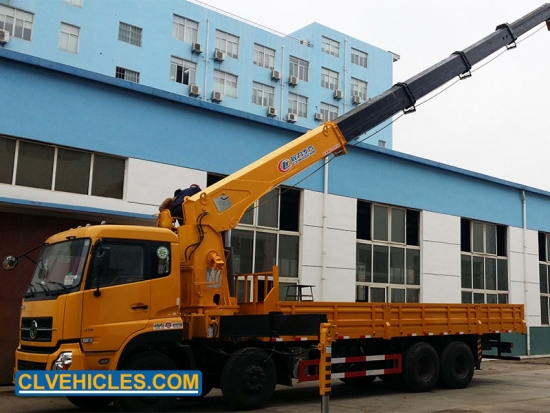

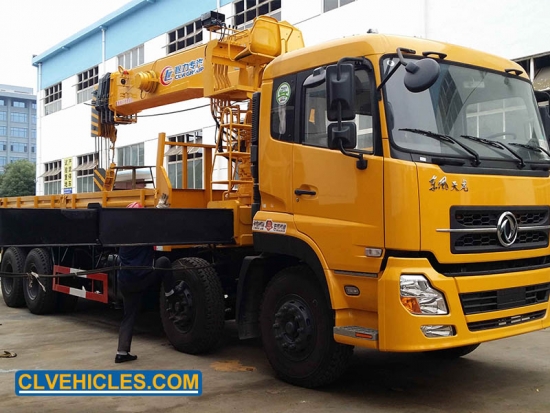

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDONGFENG KINLAND 20 TON Truck With Loading Crane
Compared special crane truck with crane, with a high speed, climbing ability characteristics.Enables fast movements, efficiency, energy saving.With a flexible, easy to operate, efficient, safe, and reliable.
Quick Details
|
Chassis Brand |
DONGFENG KINLAND |
|
Max.Lifting Capacity of Crane |
20000kgs |
|
Max.Lifting Torque |
50 T.m |
|
Max.Lifting Height |
17m |
| Crane working radius | 15m |
Applications
For general cargo lifting and other special things like timber and brick by changing other equipment.
|
|
|
|
Main boom material is HG70 high strength steel |
Strengthened hydraulic telescopic horizontal leg |
|
|
|
|
Automatic recovery device for hook.Double speed winch for heavy duty crane. |
Multiple modes and position of operation are optional. |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
|||||||||||
|
Chassis model |
CL5312JSQD |
||||||||||
|
Cab |
KINLAND CABIN with power steering. Electronic flameout，left hand drive |
||||||||||
|
Driving Type |
8*4 |
||||||||||
|
Max Speed (km/h) |
99 |
||||||||||
|
Overall dimension（mm） |
12000*2490*3950 |
||||||||||
|
Mass in working order（ kg） |
17000 |
||||||||||
|
GVW（ kg） |
31000 |
||||||||||
|
Wheelbase（mm） |
1850+4350+1350 |
||||||||||
|
F/R track base（mm） |
2011/1860 |
||||||||||
|
F/R overhang(mm) |
1525/3350 |
||||||||||
|
approach/departure angel |
18/11 |
||||||||||
|
Tire |
315/80R22.5 (12+1) |
||||||||||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||||||||||
|
Steering |
Hydraulic steering with power assistance |
||||||||||
|
Gear box |
12JSD180T |
||||||||||
|
Bridge |
Front axle |
7T |
|||||||||
|
Rear axle |
13T |
||||||||||
|
Enging |
Model |
L375 30 |
|||||||||
|
Fuel Type |
Diesel fuel |
||||||||||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
||||||||||
|
Exhaust（ml） |
8900 |
||||||||||
|
Max output power/rotate speed (hp /rpm ) |
375/2100 |
||||||||||
|
Max torque/rotate speed(N.m/rpm) |
1480/1100-1400 |
||||||||||
|
Braking system |
Service Brake |
Compressed air brake |
|||||||||
|
Park Brake |
Spring energy |
||||||||||
|
Eletric system |
24v |
||||||||||
|
Upper-Body specification |
|||||||||||
|
Model |
SQ20SA3 |
||||||||||
|
Match the truck |
Above25 tons loading truck |
||||||||||
|
Assembling space (mm) |
1400 |
||||||||||
|
Mass working weight (kgs) |
7500 |
||||||||||
|
Max lifting weight (t) |
20 |
||||||||||
|
Max lifting torque(t.m) |
50 |
||||||||||
|
Max lifting height (m) |
17 |
||||||||||
|
Max working radius (m) |
15 |
||||||||||
|
Cross section form |
Pentagon |
||||||||||
|
Number of arms |
4 |
||||||||||
|
Length(m) |
5.52-15.3 |
||||||||||
|
Extending speed(m.s) |
0.25 |
||||||||||
|
Range |
1-72 |
||||||||||
|
The arm angular velocity (°/s) |
2.4 |
||||||||||
|
Hook speed (m/min) |
5.5 |
||||||||||
|
Diameter of wire rope (mm) |
18 |
||||||||||
|
Length of wire rope (mm) |
115 |
||||||||||
|
Slewing mechanism |
Rotating speed (r/min) |
0.5 |
|||||||||
|
Rotating range (°) |
360 |
||||||||||
|
Leg |
Type |
H |
|||||||||
|
Span(m) |
2.32-7.2 |
||||||||||
|
Hydraulic system |
Pressure (mpa) |
24 |
|||||||||
|
Capacity(l) |
180 |
||||||||||
|
Safety device |
Overwind alarm |
||||||||||
|
Lifting capacity |
|||||||||||
|
Working radius (m) |
2.5 |
3.0 |
4.5 |
6.0 |
7.0 |
9.0 |
11.0 |
14 |
|||
|
Rated loading (kgs) |
20000 |
16000 |
10000 |
7200 |
6000 |
4500 |
3400 |
2000 |
|||
Crane truck is grouped together as a means of transport.By the boom, lifting torque, frame, legs and other parts.Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation.
Boom crane truck (also called knuckle crane truck,crane truck ,lorry mounted crane truck ,truck cargo with loader crane, articulated boom crane truck,crane mounted truck , boom crane truck ,truck with crane ,truck mounted crane,etc) is used to lift the cargo,load ,transport and unload heavy stuff.
A crane is a type of machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves, that can be used both to lift and lower materials and to move them horizontally. It is mainly used for lifting heavy things and transporting them to other places.
Cranes are commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment.
Truck mounted crane, is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck, gantry crane.
Truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.
