ISUZU 700P 4 TON Crane Lorry

Truck mounted crane, is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck, gantry crane.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5080JSQQ
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 38100
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

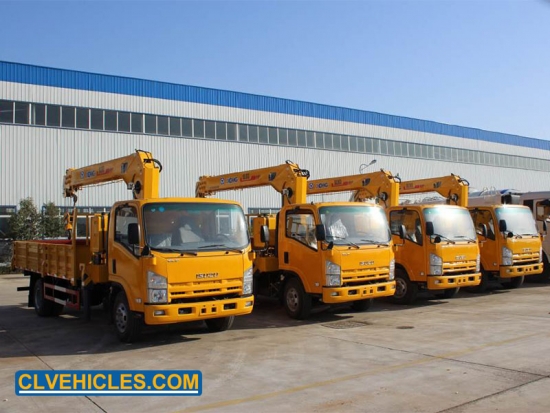

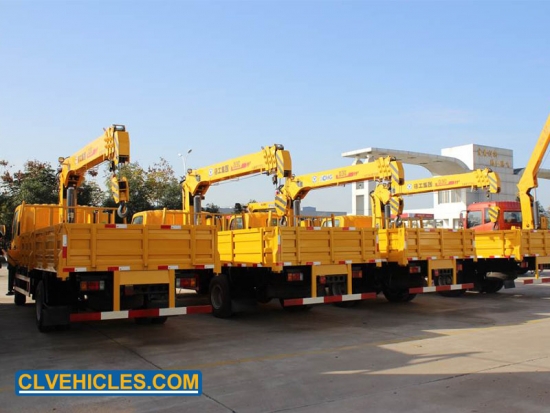

ISUZU 700P 4 TON Crane Lorry


Compared special crane truck with crane, with a high speed, climbing ability characteristics.Enables fast movements, efficiency, energy saving.With a flexible, easy to operate, efficient, safe, and reliable.


Quick Details


Chassis Brand

ISUZU 700P

Max.Lifting Capacity of Crane

4000 kg

Max.Lifting Torque

10 T.m

Max.Lifting Height

9.5m

Crane working radius 7.6m


Applications


For general cargo lifting and other special things like timber and brick by changing other equipment.




Competitive Advantages


Main boom material is HG70 high strength steel

Strengthened hydraulic telescopic horizontal leg

Automatic recovery device for hook.Double speed winch for heavy duty crane.

Multiple modes and position of operation are optional.


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.





Product Parameters



Truck Specification

Truck model

CL5080JSQQ

Cab

ISUZU 700P CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

95

Overall dimension(mm)

6750*2050*3040

GVW( kg)

7810

Mass in working order kg)

4545

Wheelbase(mm)

3815

F/R track base(mm)

1680/1650

F/R overhang(mm)

1010/1615

Approach/Departure Angel

21/19

Tire

8.25-20 (6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

MLD 6-speed gear box

Bridge

Front axle

4T

Rear axle

7T

Enging

Model

4KH1-TCG4O

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

2999

Max output power/rotate speed (hp /rpm )

120/2900

Max torque/rotate speed(N.m/rpm)

290/1500-2900

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Model

SQ4SA2

Match the truck

Above4 tons loading truck

Assembling space (mm)

900

Mass working weight (kgs)

1050

Max lifting weight (t)

4

Max lifting torque(t.m)

10

Max lifting height (m)

9.5

Max working radius (m)

7.6

Cross section form

Hexagon

Number of arms

3

Length(m)

3.5-7.82

Extending speed(m.s)

0.1

Range

0-73°

The arm angular velocity (°/s)

5.2

Hook speed (m/min)

9

Diameter of wire rope (mm)

8

Length of wire rope (mm)

45

Slewing mechanism

Rotating speed (r/min)

2.5

Rotating range (°)

360

Leg

Type

H

Span(m)

1.86-5.1

Hydraulic system

Pressure (mpa)

17

Capacity(l)

45

Safety device

Overwind alarm

Lifting capacity

Working radius (m)

2.5

3

4

5

6

7





Rated loading (kgs)

4000

1380

930

680

530

430
