HOWO 4x2 120hp Cargo Truck with 4ton Crane

Crane truck is grouped together as a means of transport.By the boom, lifting torque, frame, legs and other parts.Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5107JSQG4
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 22000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

HOWO 10ton 120hp Cargo Truck with 4ton Crane


Compared special crane truck with crane, with a high speed, climbing ability characteristics.Enables fast movements, efficiency, energy saving.With a flexible, easy to operate, efficient, safe, and reliable.


Quick Details


Chassis Brand

HOWO

Max Lifting Capacity of Crane

4000kg

Crane type

Straight arm type

Truck Loading Capacity

8000kg

Crane working radius 8m


Applications


For general cargo lifting and other special things like timber and brick by changing other equipment.




Competitive Advantages


Main boom material is HG70 high strength steel

Strengthened hydraulic telescopic horizontal leg

Automatic recovery device for hook.Double speed winch for heavy duty crane.

Multiple modes and position of operation are optional.

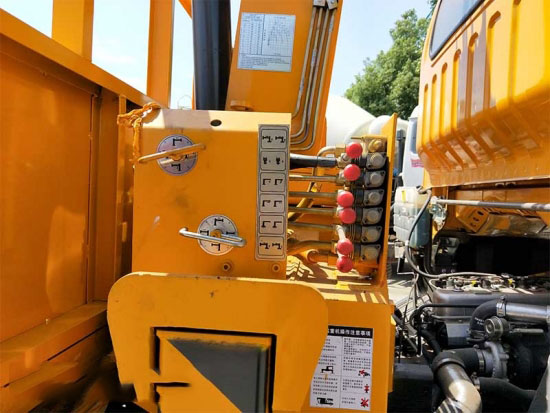

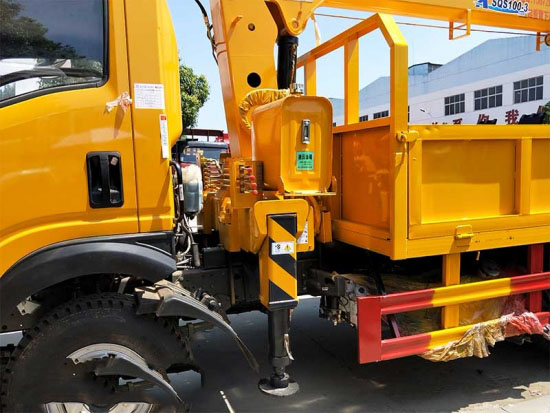

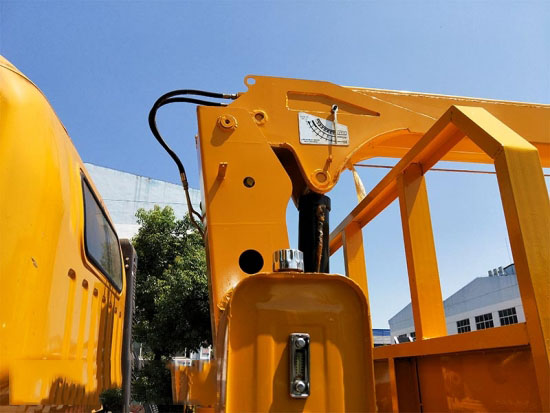

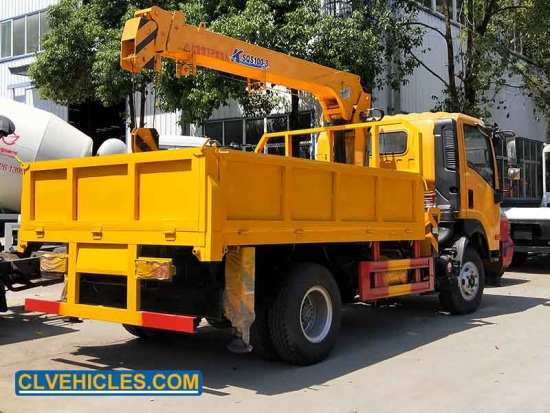

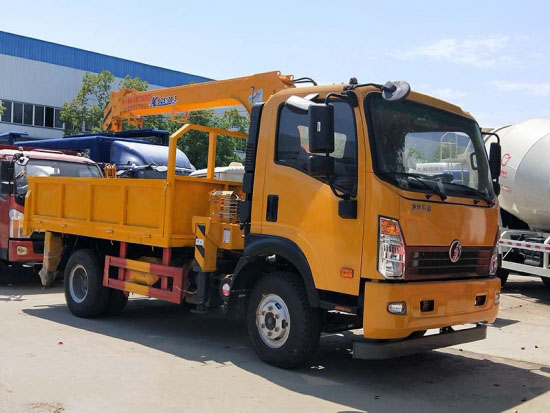

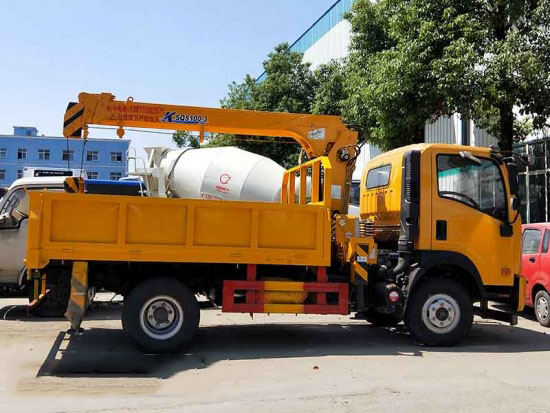

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.





Product Parameters


Vehicle Description

Vehicle model

Crane truck

Overall dimensions (mm)

7130×2350×3400

GVW (kg)

Appro×9900

Fact loading capacity(t)

10

Mass in working order (kg)

Appro×6295

Max.Speed (km/h)

90

Chassis Description

Chassis Model

ZZ1087

Cab

Standard cabin withRight hand drive

Color

 Optional

Allowable person in cab

 2/3

Wheel base (mm)

3800

Front/Rear track base (mm)

1503/1604

Front/Rear overhang (mm)

1160/2170

Number of axles

2

Axle

Front axle

2400

Rear axle

7200

Traction system

 4*2

Operation control system

 Power steering

Braking system

 Full air

Electric system

 24V

Transmission

5speed

Spring plate

11/9+7

Tire specification

 7.50R16 (6+1)

Tire quantity

 6+1

Engine Description

Engine model

 CY4102BZLQ

Emission standard

 Euro2

Exhaust/output

 3856ml/88kw

Horse power

 120hp

 Up-parts Description

Cargo Dimension (mm)

 4245×2150×550

Cranemax loading capacity(kg)

 4000

Cranemax lifting height(m)

 10.6

Cranemax working Radius (m)

 8.00

Installation Space (m)

 0.7

Number of arms

 3

Radius (m)

2.5

3

 4

 5

 6

 7

Capacity  (kg)

4000

1380

 930

 680

 530

 430

Working Condition:

 1、Altitude: 0-4500m

 2、Temperature: -350C~+450C

 3、Relative humidity: 80%

 4、Wind force: ≤8 degree
