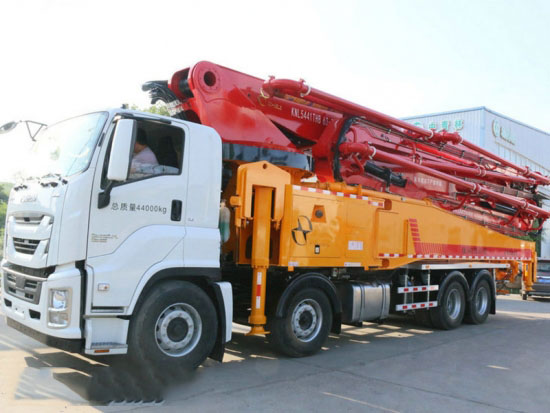

ISUZU (VC66) 8x4 Heavy-duty 56m Vehicle of Concrete Pumping

The boom of the concrete pump truck determines its flexibility and adaptability, because the higher the boom, the larger the casting height and the sheet radius.






  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CLW5441-63X-7RZ
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 499,600 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters


SUZU heavy-duty 56m concrete pump truck / 8x4 ISUZU 56m truck-mounted concrete pump



As a special vehicle, concrete pump trucks should put forward requirements for safety, mechanical performance, manufacturers' after-sales service and parts supply due to their special functions. Otherwise, once it happens, it will not only affect the construction progress, but also have unimaginable consequences.


Quick Details



Chassis brand
ISUZU
Dimension of vehicle 14150x2550x4000mm
Gross weight of vehicle 46000kg
Placeing boom at Max. height/depth/radius
62.1/33.57/57.1m
Slewing angle ±270°
Max.  Theoretical throughput (high/low pressure) 91/180Mpa
Max. Concrete outlet pressure

12/8.5Mpa

Conveying cylinder inner diameter/stroke  Φ260x2000mm
Feeding height
1450mm
Concrete distribution valve form S tube

Applications


The concrete pump truck is a modern construction machinery that integrates the transportation of finished concrete and the pouring process, to continuously, uniformly and promptly convey the premixed concrete to the form-work.


The application of pump trucks and the superiority of the pumping process make the pump trucks widely used in the construction of large concrete structures such as:
1) high-rise and super-high-rise buildings;
2) underground and tunnel projects;
3) port docks and dam projects;
4) roads and bridges and culvert projects.


Competitive Advantage


A. The continuous working pumping system blocks the segregation of concrete, hence the slump of the concrete will not be amplified, which visibly guarantees the quality of the construction operation.


B. The concrete pump truck concurrently solves the horizontal and vertical transportation also, pouring problems of concrete with high mechanization required few labor. The construction organization is simple yet suitable for structural materials thanks to high compressive strength it occupies.


C. The concrete pump truck casting operation requires continuous operation, with high construction efficiency and fast operation progress. Additionally, the similarity of expansion coefficient of concrete and steel bar resulted in intensive bonding strength contributing to reinforced concrete with a wider application range.


D. The concrete pump truck posses strong adaptability to the construction work surface with wide range of operations, the pipeline can be laid to places that are difficult to reach by other equipment. The concrete pump truck can fill and cast the concrete in place under a certain pressure, and also can be used in series to increase the output distance required during construction.

Product Details


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



PARAMETER

A

Vehicle

1.

Chassis

Brand (series)

ISUZU (VC66)

-

Class

Enhanced heavy-duty

-

Ex-Factory (model)

2020

-

Drive

8×4

-

Wheel

Left hand

-

Steer

Power-assisted

-

Wheelbase

2100+4325+1370

mm

Speed

85

km/h

Battery

24

V

2.

Engine

Model

6WG1-TCG62

-

Fuel

Diesel

-

Type

Water cooling

-

Intake

Turbocharged

-

Cylinder (Arrangement)

6 (In line)

-

Displacement (Standard)

15681 (EURO VI)

ml

Max. Power/Output

520/338

hp/kw

Developed torque

2300

N·m

3.

Cabin

Layout

2 Passengers

-

Facility

Centre lock

Devices (Mufti-function)

LCD instrument + steering wheel

Configuration

Electrical Doors & windows

Air conditioner

Refrigerant + Heating

4.

Axle

Loading (Front/rear)

18/26 (Two-axis group)

kg

Quantity

4

-

Ratio

3.21

5.

Tyre

Specification

12R22.5 18PR

-

Quantity

12

Type

Steel-type

6.

Brake

Type

Air brake

-

Element

ABS

7.

Transmission

Gear

ZF 8-Speed

-

Type

AMT
