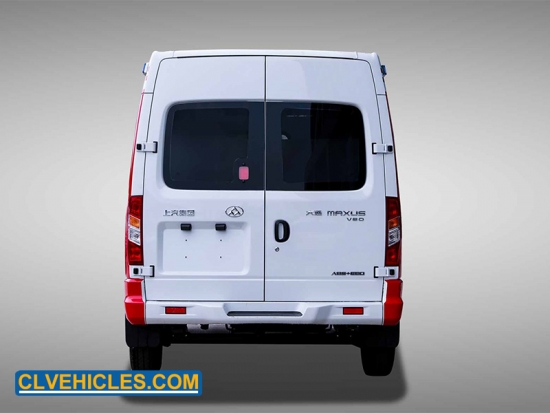

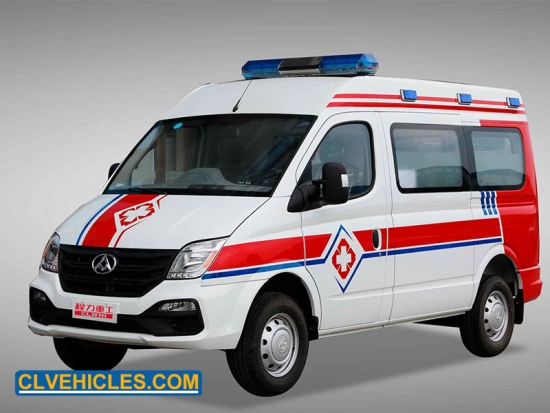

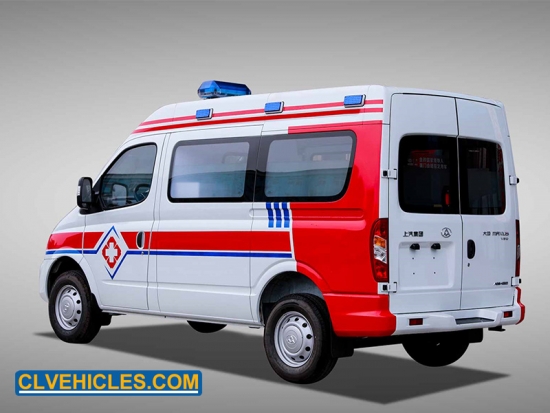

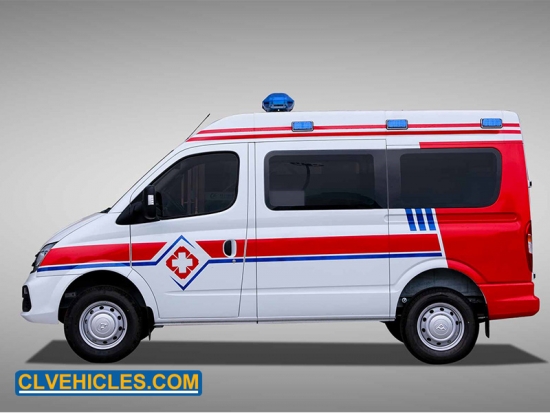

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcMAXUS ward-type 2.5T diesel emergency ambulance car
MAXUS ward-type ambulance is a vehicle for
transportation of sick or injured people to, from or between places of
treatment for an illness or injury, and in some instances will also provide out
of hospital medical care to the patient. Installing device for 24 hour supplying power. Stocker
x2 Unit, 220 V. intelligent Stretcher x1 Unit with stainless plate fixed at the
bottom, 1 Unit Chair at front. multi-drawers for medical drug storage, and Top
drawers. Installing hand hold supporter.
Quick Details
One 10-liter oxygen cylinders
Size of ambulance
4950×1998×2510
A/C
Include
Chassis brand
MAXUS
Horsepower
136hp(Euro 5)
Outside
Provide free logo design,both sides doors pasted with cross mark
Oxygen supply system
Upholstery
ABS composite material, high-duty,anti-microbial
First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher
Applications
Ambulance designed and
equipped for the treatment, monitoring and transportation of critically ill patients.
Ambulance equipped with first aid resuscitation equipment and essential
medicines that can rescue critically ill or injured persons on site or during
transportation.
Transfer
type: transporter ambulance is the most common ambulance that can be used to
transport patients with relatively stable condition to hospital. Only some
simple medical treatments such as infusion, oxygen inhalation, hemostasis,
bandaging and so on are allowed in transit.
Guardianship type: guardianship
ambulance refers to the possession of first aid recovery equipment and
necessary drugs, capable of rescuing critically ill and injured people at the
scene or in transit.
Competitive Advantage
1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you
2. 2.5T large diesel exhaust, high speed for transportation
3. Engine use ECO-D environmental diesel engine
4. Use Double cone synchronizer, improve the stationarity when change the gear
5. Ambulance equipped with complete medical equipment with cheaper price
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||||
|
Truck model |
CLW5047XJHS5 |
|||
|
Cab |
MAXUS CABIN |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
150 |
|||
|
Overall dimension（mm） |
4950×1998×2510 |
|||
|
Ambulance Van dimension (mm) |
2400×1800×1600 |
|||
|
GVW（kg） |
3700 |
|||
|
Mass in working order（kg） |
2690 |
|||
|
Wheelbase（mm） |
3100 |
|||
|
Approach/Departure Angel |
26/17 |
|||
|
Tire |
215/75R16LT |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
6-Speed gear box |
|||
|
Suspension |
Front |
Front Mcpherson independent suspension |
||
|
Rear |
Rear leaf spring |
|||
|
Engine |
Model |
SC25R136.1Q5 |
||
|
Fuel Type |
Diesel |
|||
|
Type |
2.5T In-line four cylinder supercharged cold cylinder direct injection, VGT turbo |
|||
|
Exhaust（ml） |
2499 |
|||
|
Max output power/ rotating speed(hp/rpm) |
136/3800 |
|||
|
Max Torque/rotating speed(nm/rpm) |
330/1800-2400 |
|||
|
Braking system |
Service Brake |
Air brake and dish brake |
||
|
Park Brake |
Spring energy |
|||
|
Eletric system |
24v |
|||
|
Upper-Body specification |
||||
|
basic configuration |
Medical warehouse air conditioning and heating |
|||
|
Circuits and medical appliances |
Alarm and warning system |
Long Row Standard Police Lights Or Various popular special-shaped police lights |
||
|
100 watt siren and handheld control |
||||
|
Power supply system |
Original vehicle power supply system |
|||
|
External power supply system |
||||
|
AC circuit protection system |
||||
|
Available for usb / 12v / 220v uninterruptible power supply |
||||
|
1000w Sine wave inverter system |
||||
|
control system |
Micro-circuit centralized control system Cockpit emergency start system Integrated switch control LCD display equipment |
|||
|
Oxygen supply system |
two 10-liter oxygen cylinders, special shock-absorbing clamps |
|||
|
oxygen pressure reducing valves, |
||||
|
humidification bottles |
||||
|
hidden oxygen pipes, international oxygen ports |
||||
|
Ventilation system |
Two-way ventilation fan |
|||
|
Disinfection system |
Mosaic UV anti-virus lamp |
|||
|
Light system |
Medical special led light Rear spotlight Car left and right side lights |
|||
|
Intercom system |
Front and rear window intercom, one-way control |
|||
|

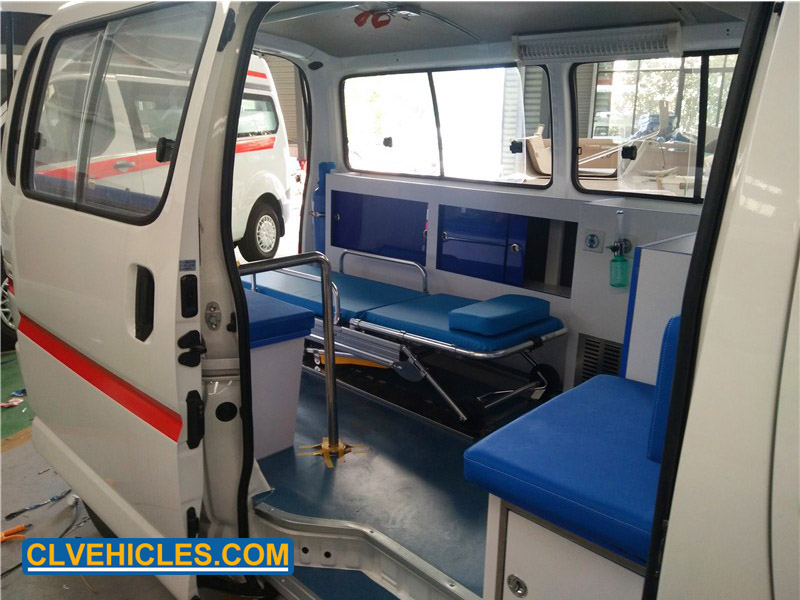

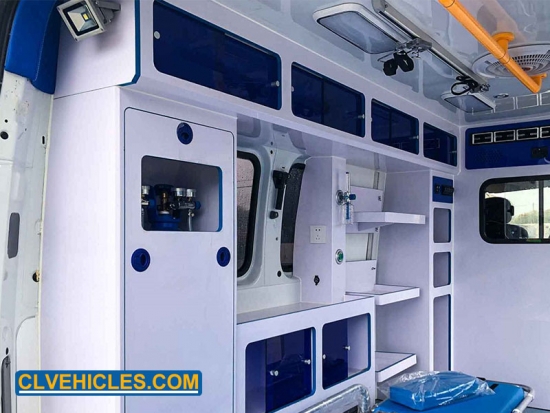

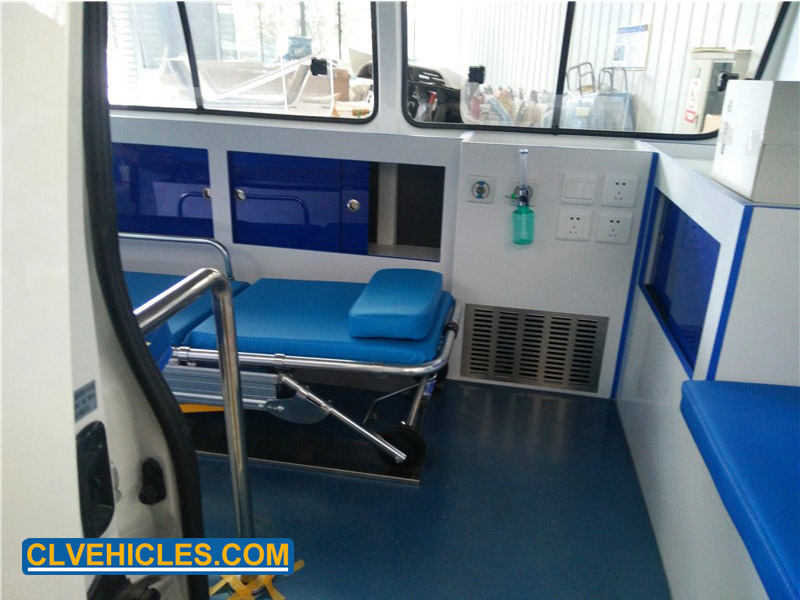

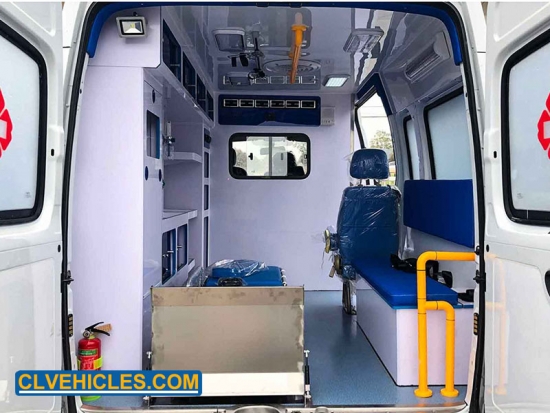

Medical warehouse interior |
The interior adopts abs conforming material or overall mold forming process. The surface is smooth, antibacterial, high hardness, and the floor is easy to clean. |
|||
|
partition wall, |
||||
|
push-pull observation window on the partition wall, |
||||
|
pill cabinet behind the partition wall, |
||||
|
fixed oxygen cylinder beside the pill cabinet, |
||||
|
long seat belt and seat belt pre-buried, |
||||
|

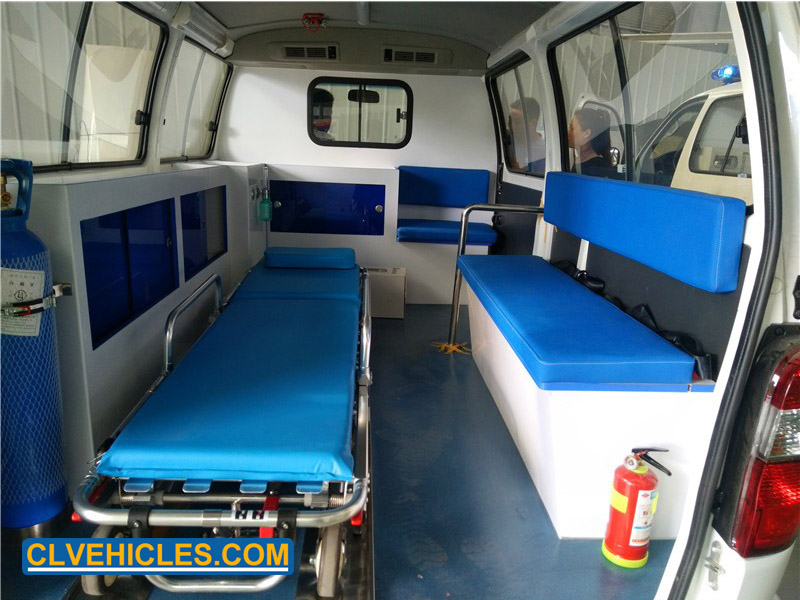

Seat system |
3 seat long soft seat on the right |
|||
|
Folding reverse independent seat with three-point safety belt |
||||
|
First aid |
Automatic loading stretcher, |
|||
|
sliding infusion stand with 2 sets of infusion bottle hooks, |
||||
|
fire extinguisher |
||||
|
Exterior |
Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors |
|||
