JINBEI 4x2 Deiesl 85hp Transport Type Ambulance Van
Famous brand with easy after-sales maintenance and economic price , save cost for big order.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The ambulance car is also called ambulance, ambulance vehicle, ICU ambulance, etc. It is usually consisted of truck chassis, ambulance equipment.
Brand:
heritagetrucksolution.COMModel No.:
CL5047XJHS7Minimum Order Quantity:
1 UnitPrice:
USD 33,200 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

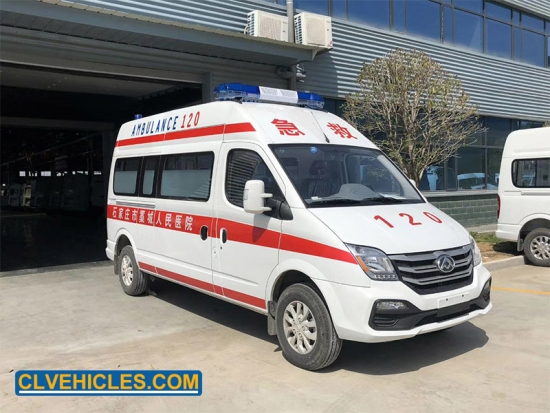

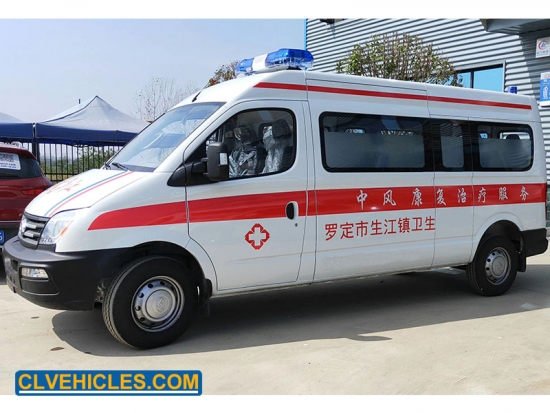

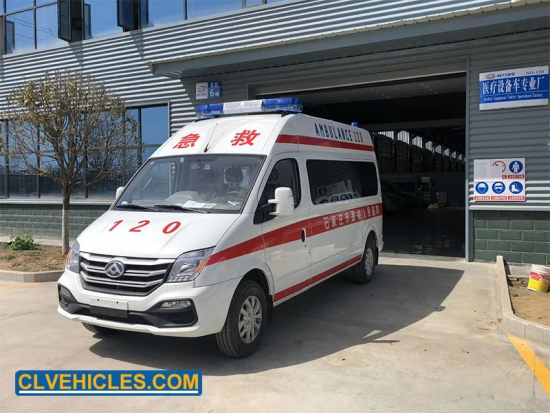

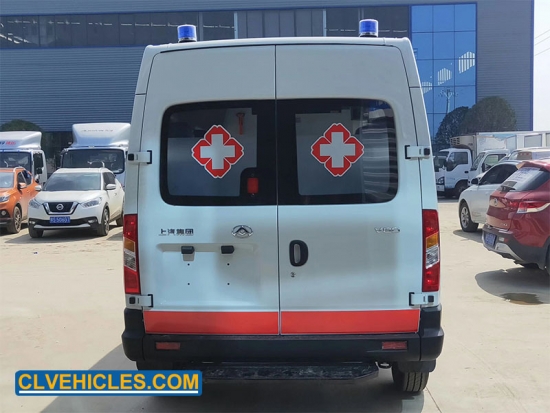

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcMAXUS V80 ward-type patient transportation 2.5T diesel emergency ambulance car
MAXUS ward-type ambulance is equipped one portable
ambulance stretcher, one medical locker, one oxygen bomb, two transfusion
hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with
two soft cushion, soft back and life belt, one aluminum alloy slid window, one
top alarm lamp, two headlamps, one converter, one power jack, handrail,
footstep, plastic floor, ambulance cross sticker. As a professional ambulance manufacturer,
the ambulance for sale is with light curb weight, smooth surface, clean easily and other
advantages.
Quick Details
One 10-liter oxygen cylinders
Size of ambulance
5700×1998×2510
A/C
Include
Chassis brand
MAXUS
Horsepower
136hp(Euro 5)
Outside
Provide free logo design,both sides doors pasted with cross mark
Oxygen supply system
Upholstery
ABS composite material, high-duty,anti-microbial
First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher
Applications
Ambulance designed and equipped for the treatment, monitoring and transportation of critically ill patients. Ambulance equipped with first aid resuscitation equipment and essential medicines that can rescue critically ill or injured persons on site or during transportation.
Transfer type: transporter ambulance is the most common ambulance that can be used to transport patients with relatively stable condition to hospital. Only some simple medical treatments such as infusion, oxygen inhalation, hemostasis, bandaging and so on are allowed in transit.
Guardianship type: guardianship ambulance refers to the possession of first aid recovery equipment and necessary drugs, capable of rescuing critically ill and injured people at the scene or in transit.
Competitive Advantage
1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you
2. 2.5T large diesel exhaust, high speed for transportation
3. Engine use ECO-D environmental diesel engine
4. Use Double cone synchronizer, improve the stationarity when change the gear
5. Ambulance equipped with complete medical equipment with cheaper price
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck model |
CLW5047XJHS5 |
|||
|
Cab |
MAXUS CABIN |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
150 |
|||
|
Overall dimension（mm） |
5700×1998×2510 |
|||
|
Ambulance Van dimension (mm) |
3150×1800×1600 |
|||
|
GVW（kg） |
3700 |
|||
|
Mass in working order（kg） |
2690 |
|||
|
Wheelbase（mm） |
3100 |
|||
|
Approach/Departure Angel |
26/17 |
|||
|
Tire |
215/75R16LT |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
6-Speed gear box |
|||
|
Suspension |
Front |
Front Mcpherson independent suspension |
||
|
Rear |
Rear leaf spring |
|||
|
Engine |
Model |
SC25R136.1Q5 |
||
|
Fuel Type |
Diesel |
|||
|
Type |
2.5T In-line four cylinder supercharged cold cylinder direct injection, VGT turbo |
|||
|
Exhaust（ml） |
2499 |
|||
|
Max output power/ rotating speed(hp/rpm) |
136/3800 |
|||
|
Max Torque/rotating speed(nm/rpm) |
330/1800-2400 |
|||
|
Braking system |
Service Brake |
Air brake and dish brake |
||
|
Park Brake |
Spring energy |
|||
|
Electric system |
24v |
|||
|
Upper-Body specification |
||||
|
Basic configuration |
Medical warehouse air conditioning and heating |
|||
|
Circuits and medical appliances |
Alarm and warning system |
Long Row Standard Police Lights Or Various popular special-shaped police lights |
||
|
100 watt siren and handheld control |
||||
|
Power supply system |
Original vehicle power supply system |
|||
|
External power supply system |
||||
|
AC circuit protection system |
||||
|
Available for usb / 12v / 220v uninterruptible power supply |
||||
|
1000w Sine wave inverter system |
||||
|
control system |
Micro-circuit centralized control system Cockpit emergency start system Integrated switch control LCD display equipment |
|||
|
Oxygen supply system |
two 10-liter oxygen cylinders, special shock-absorbing clamps |
|||
|
oxygen pressure reducing valves, |
||||
|
humidification bottles |
||||
|
hidden oxygen pipes, international oxygen ports |
||||
|
Ventilation system |
Two-way ventilation fan |
|||
|
Disinfection system |
Mosaic UV anti-virus lamp |
|||
|
Light system |
Medical special led light Rear spotlight Car left and right side lights |
|||
|
Intercom system |
Front and rear window intercom, one-way control |
|||
|

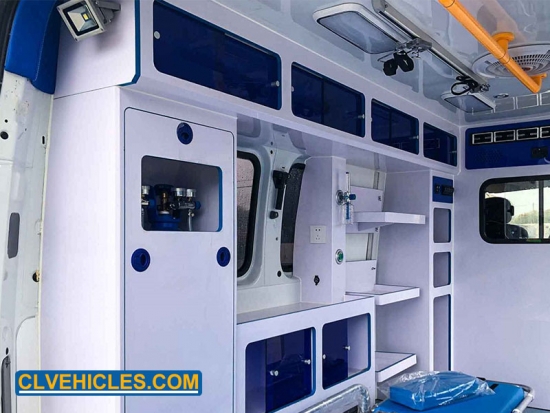

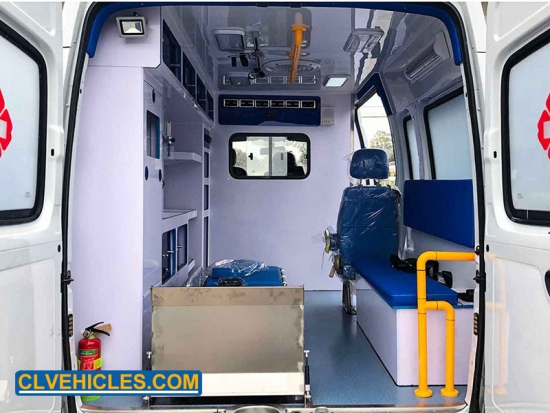

Medical warehouse interior |
The interior adopts abs conforming material or overall mold forming process. The surface is smooth, antibacterial, high hardness, and the floor is easy to clean. |
|||
|
partition wall, |
||||
|
push-pull observation window on the partition wall, |
||||
|
pill cabinet behind the partition wall, |
||||
|
fixed oxygen cylinder beside the pill cabinet, |
||||
|
long seat belt and seat belt pre-buried, |
||||
|
Seat system |
3 seat long soft seat on the right |
|||
|
Folding reverse independent seat with three-point safety belt |
||||
|
First aid |
Automatic loading stretcher, |
|||
|
sliding infusion stand with 2 sets of infusion bottle hooks, |
||||
|
fire extinguisher |
||||
|
Exterior |
Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors |
|||
Famous brand with easy after-sales maintenance and economic price , save cost for big order.
Mercedes-Benz ambulance equipped with warm air and air condition, the cab and the medical cabin walls separate installation, install 3 bar chair on the right side of the medical cabin.
The car floor using acid and alkali resistance, fire prevention, anti-slip, anti-static floor medical cabin around four convex edge, prevent the accumulation and antirust, easy clean with water.
The cockpit and medical module adopt the independent cooling and heating air conditioning system, the medical cabin has the heating fan, and can be controlled independently.
FORD negative pressure ambulance is equipped negative pressure device can form negative pressure in the car to prevent from spreading in the car and provide medical care in the car.
FORD ambulance is also called ambulance car, is one vehicle for treatment, monitoring and transport of critically ill patients. It is widely used to all levels medical institutions.
