HOWO 4x2 10 Ton Crane Mounted Truck With 3 Ton Crane

Truck with crane  is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5166JSQD1
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 43700
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

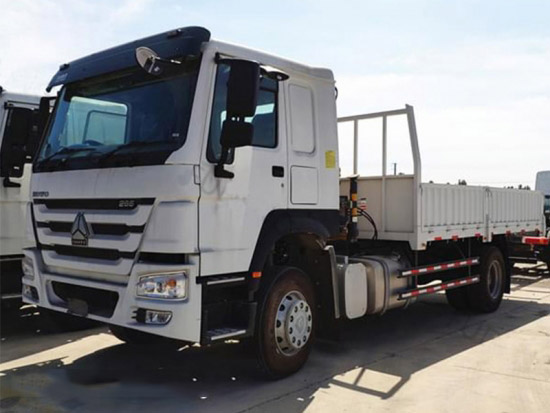

HOWO 4x2 10 Ton Crane Mounted Truck With 3 Ton Crane


Compared special crane truck with crane, with a high speed, climbing ability characteristics.Enables fast movements, efficiency, energy saving.With a flexible, easy to operate, efficient, safe, and reliable.


Quick Details


Chassis Brand

SINOTRUK HOWO

Max.Lifting Capacity of Crane

3kgs

Max.Lifting Torque

6.4 T.m

Max.Lifting Height

8.5m

Crane working radius 5.9m


Applications

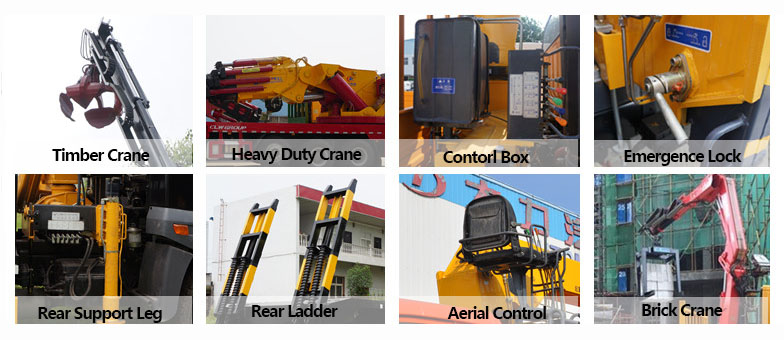

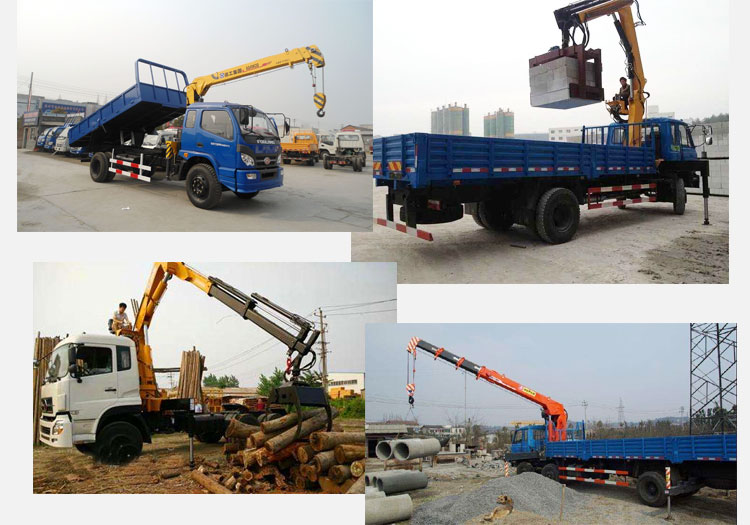

For general cargo lifting and other special things like timber and brick by changing other equipment.




Competitive Advantages

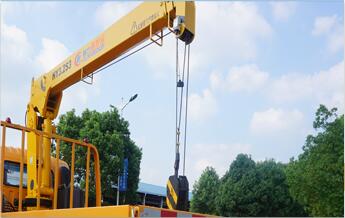

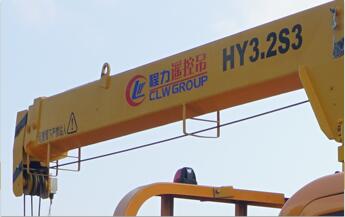

Main boom material is HG70 high strength steel

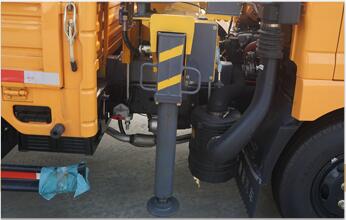

Strengthened hydraulic telescopic horizontal leg

Automatic recovery device for hook.Double speed winch for heavy duty crane.

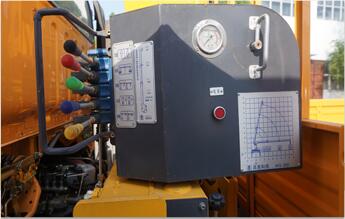

Multiple modes and position of operation are optional.


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.





Product Parameters



Truck Specification

Chassis model

CL5166JSQD1

Cab

HOWO CABIN with power steering. Electronic flameout,left hand drive

Driving Type

4*2

Max Speed (km/h)

99

Overall dimension(mm)

12000*2490*3840

Mass in working order( kg)

10000

GVW( kg)

16000

Wheelbase(mm)

5600

F/R track base(mm)

2011/1860

F/R overhang(mm)

1525/3350

approach/departure angel

18/11

Tire

315/80R22.5 (10+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

12JSD180T

Bridge

Front axle

7T

Rear axle

13T

Enging

Model

ISLE375 30

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

9726

Max output power/rotate speed (hp /rpm )

375/2100

Max torque/rotate speed(N.m/rpm)

1550/1100-1400

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Model

SQ3ZA1

Match the truck

Above15 tons loading truck

Assembling space (mm)

800

Max lifting weight (t)

3.5

Max lifting torque(t.m)

6.4

Max lifting height (m)

8.5

Max working radius (m)

5.9

Cross section form

Pentagon

Number of arms

2

Length(m)

4.4-7.5

Extending speed(m.s)

0.19

Range

1-72

The arm angular velocity (°/s)

3.2

Hook speed (m/min)

17

Diameter of wire rope (mm)

12

Length of wire rope (mm)

115

Slewing mechanism

Rotating speed (r/min)

2

Rotating range (°)

360

Leg

Type

H

Span(m)

2.28-6

Hydraulic system

Pressure (mpa)

24

Capacity(l)

150

Safety device

Overwind alarm
