Brand:
heritagetrucksolution.COMModel No.:
CL5041JSQQMinimum Order Quantity:
1 UnitPrice:
USD 26500Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

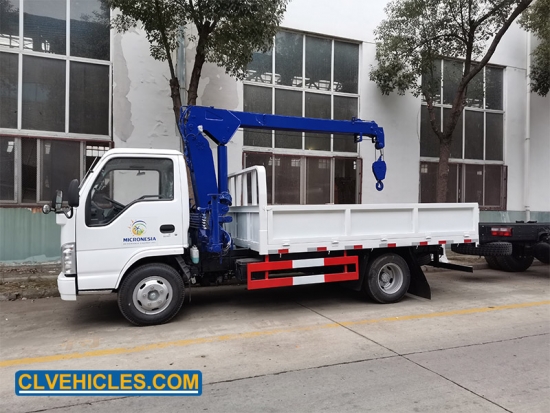

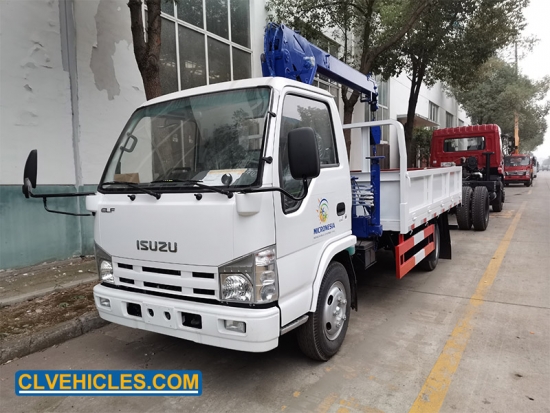

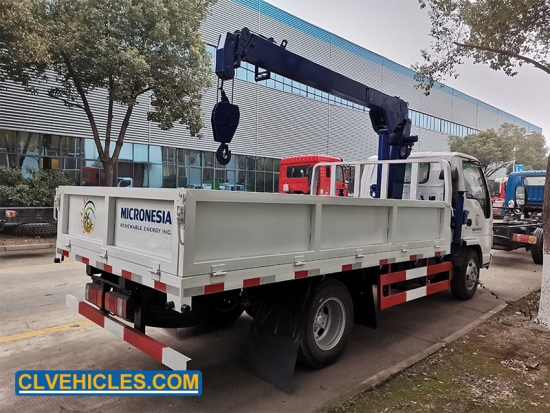

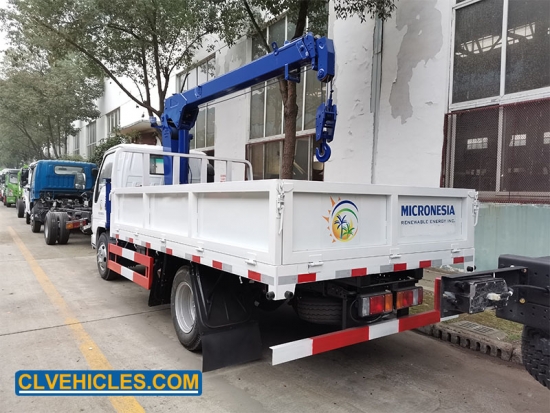

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcISUZU 100P 3.2TON Truck Mounted Crane
1. Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
Quick Details
|
Chassis Brand |
ISUZU 100P |
|
Max.Lifting Capacity of Crane |
3200 kg |
|
Max.Lifting Torque |
8.8 T.m |
|
Max.Lifting Height |
9.5m |
| Crane working radius | 7.5m |
Applications
For general cargo lifting and other special things like timber and brick by changing other equipment.
|
|
|
|
Main boom material is HG70 high strength steel |
Strengthened hydraulic telescopic horizontal leg |
|
|
|
|
Automatic recovery device for hook.Double speed winch for heavy duty crane. |
Multiple modes and position of operation are optional. |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
|||||||||||
|
Truck model |
CL5041JSQQ |
||||||||||
|
Cab |
ISUZU 100P CABIN |
||||||||||
|
Driving Type |
4*2 Left hand driving |
||||||||||
|
Max Speed (km/h) |
95 |
||||||||||
|
Overall dimension（mm） |
5995*1900*2820 |
||||||||||
|
GVW（ kg） |
4495 |
||||||||||
|
Mass in working order kg） |
2900 |
||||||||||
|
Wheelbase（mm） |
3360 |
||||||||||
|
F/R track base（mm） |
1504/1425 |
||||||||||
|
F/R overhang（mm） |
1015/1890 |
||||||||||
|
Approach/Departure Angel |
24/14 |
||||||||||
|
Tire |
6.50-16 (6+1) |
||||||||||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||||||||||
|
Steering |
Hydraulic steering with power assistance |
||||||||||
|
Gear box |
MSB 5-speed |
||||||||||
|
Bridge |
Front axle |
2T |
|||||||||
|
Rear axle |
3.5T |
||||||||||
|
Enging |
Model |
4KH1-TCG4O |
|||||||||
|
Fuel Type |
Diesel fuel |
||||||||||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
||||||||||
|
Exhaust（ml） |
2771 |
||||||||||
|
Max output power/rotate speed (hp /rpm ) |
98/3400 |
||||||||||
|
Max torque/rotate speed(N.m/rpm) |
220/1500-2900 |
||||||||||
|
Braking system |
Service Brake |
Compressed air brake |
|||||||||
|
Park Brake |
Spring energy |
||||||||||
|
Eletric system |
24v |
||||||||||
|
Upper-Body specification |
|||||||||||
|
Model |
SQ3.5A2 |
||||||||||
|
Match the truck |
Above3 tons loading truck |
||||||||||
|
Assembling space (mm) |
900 |
||||||||||
|
Mass working weight (kgs) |
950 |
||||||||||
|
Max lifting weight (t) |
3.5 |
||||||||||
|
Max lifting torque(t.m) |
8.8 |
||||||||||
|
Max lifting height (m) |
9.5 |
||||||||||
|
Max working radius (m) |
7.5 |
||||||||||
|
Cross section form |
Pentagon |
||||||||||
|
Number of arms |
3 |
||||||||||
|
Length(m) |
3.5－7.82 |
||||||||||
|
Extending speed(m.s) |
0.1 |
||||||||||
|
Range |
1-73 |
||||||||||
|
The arm angular velocity (°/s) |
5.2 |
||||||||||
|
Hook speed (m/min) |
9 |
||||||||||
|
Diameter of wire rope (mm) |
8 |
||||||||||
|
Length of wire rope (mm) |
45 |
||||||||||
|
Slewing mechanism |
Rotating speed (r/min) |
2.5 |
|||||||||
|
Rotating range (°) |
360 |
||||||||||
|
Leg |
Type |
H |
|||||||||
|
Span(m) |
1.85-3.1 |
||||||||||
|
Hydraulic system |
Pressure (mpa) |
17 |
|||||||||
|
Capacity(l) |
45 |
||||||||||
|
Safety device |
Overwind alarm |
||||||||||
|
Lifting capacity |
|||||||||||
|
Working radius (m) |
2.5 |
3.5 |
4.5 |
5.5 |
7.61 |
|
|
|
|||
|
Rated loading (kgs) |
3200 |
1380 |
930 |
680 |
430 |
|
|
|
|||
Crane truck is grouped together as a means of transport.By the boom, lifting torque, frame, legs and other parts.Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation.
Boom crane truck (also called knuckle crane truck,crane truck ,lorry mounted crane truck ,truck cargo with loader crane, articulated boom crane truck,crane mounted truck , boom crane truck ,truck with crane ,truck mounted crane,etc) is used to lift the cargo,load ,transport and unload heavy stuff.
A crane is a type of machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves, that can be used both to lift and lower materials and to move them horizontally. It is mainly used for lifting heavy things and transporting them to other places.
Cranes are commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment.
Truck mounted crane, is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck, gantry crane.
Truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.
