This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
More efficient,multiple hydraulic cylinders form a jointed boom connection mechanism, faster to get work done. Narrow working environment ,More suitable for the factory warehouse & other relatively narrow working environment
Brand:
heritagetrucksolution.COMModel No.:
CL5110JSQQ1Minimum Order Quantity:
1 UnitPrice:
USD 37200Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

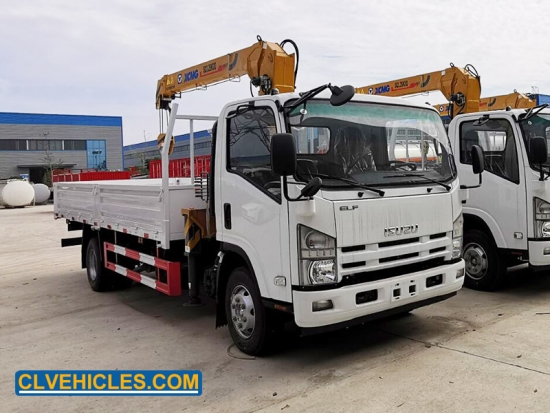

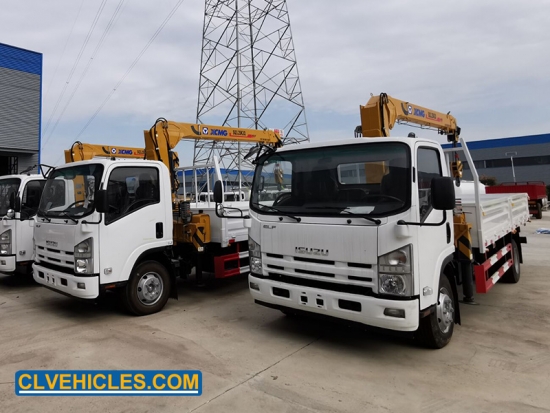

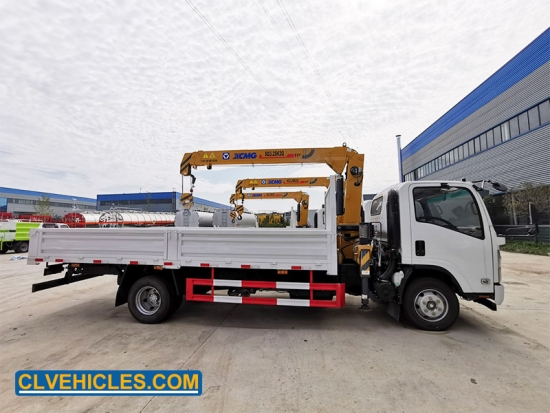

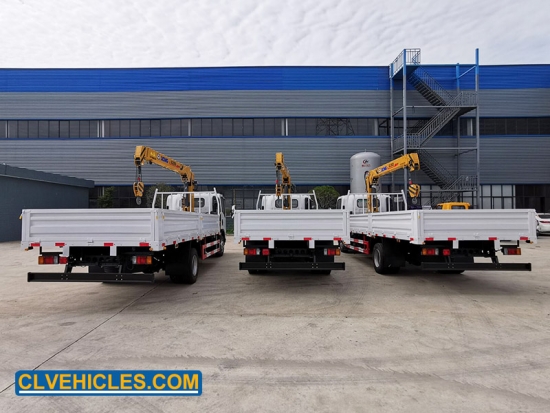

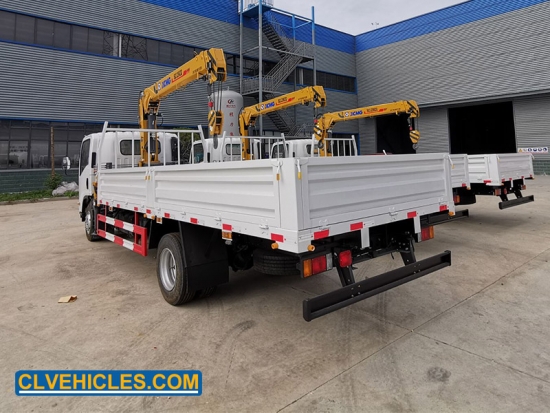

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcISUZU 700P 4x2 190hp Euro5 LHD Box Truck with 4ton Telescopic Crane
Truck-mounted lifting truck, crane truck, is a kind of equipment for lifting, turning and lifting goods through hydraulic lifting and telescopic system, which is usually assembled on trucks. The lifting weights are 3 tons, 5 tons, 8 tons, 12 tons and more.
Quick Details
|
Chassis Brand |
ISUZU 700P |
|
Max.Lifting Capacity of Crane |
4000 kg |
|
Max.Lifting Torque |
10 T.m |
|
Max.Lifting Height |
9.5m |
| Crane working radius | 7.6m |
Applications
For general cargo lifting and other special things like timber and brick by changing other equipment.
|
|
|
|
Main boom material is HG70 high strength steel |
Strengthened hydraulic telescopic horizontal leg |
|
|
|
|
Automatic recovery device for hook.Double speed winch for heavy duty crane. |
Multiple modes and position of operation are optional. |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Vehicle model |
Crane truck |
Overall dimensions (mm) |
6900×2200×3035 |
||
|
GVW (kg) |
Appro×11000 |
Fact loading capacity(t) |
8 |
||
|
Curb weight (kg) |
Appro×5150 |
Max. Speed (km/h) |
90 |
||
|
Chassis Description |
|||||
|
Chassis Brand |
ISUZU |
||||
|
Cab |
Single row cab with A/C |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
2-3 |
||||
|
Wheel base (mm) |
3815 |
||||
|
Front/Rear track base (mm) |
1680/1650 |
||||
|
Front/Rear overhang (mm) |
1015/2400 |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
4000 |
|||
|
Rear axle |
7000 |
||||
|
Traction system |
4×2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Air brake |
||||
|
Transmission |
6-speed MLD |
||||
|
Tire specification |
8.25-16 |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
ISUZU Engines |
||||
|
Engine model |
4HK1-TCG51 |
||||
|
Emission standard |
Euro 5 |
||||
|
Exhaust/output |
5190ml/139kw |
||||
|
Horse power |
190hp |
||||
|
Up-parts Description |
|||||
|
Cargo box |
|||||
|
Material |
Carbon Steel |
||||
|
Dimension (mm) |
3200×2100×550 |
||||
|
Thickness of bottom / side (mm) |
3.5 / 1 |
||||
|
Crane |
|||||
|
Brand |
CLW |
||||
|
Model |
SQ4SA2 |
||||
|
Max. loading capacity(kg) |
4000 |
||||
|
Max. lifting torque (t.m) |
10 |
||||
|
Max. lifting height(m) |
9.5 |
||||
|
Max. working radius (m) |
7.6 |
||||
|
Installation space (m) |
0.85 |
||||
|
Number of arms |
3 |
||||
|
Length of boom (m) |
3.5-7.82 |
||||
|
Outrigger |
|||||
|
Type |
H |
||||
|
Horizontal Breadth (mm) |
1.85-5.1 |
||||
|
Hook & wire-rope |
|||||
|
Speed of hook lifting (m/min) |
9 |
||||
|
Diameter (mm) |
8 |
||||
|
Length (m) |
45 |
||||
|
Slewing gear |
|||||
|
Speed (r/min) |
2 |
||||
|
Angel |
±360° |
||||
Crane truck is grouped together as a means of transport.By the boom, lifting torque, frame, legs and other parts.Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation.
Boom crane truck (also called knuckle crane truck,crane truck ,lorry mounted crane truck ,truck cargo with loader crane, articulated boom crane truck,crane mounted truck , boom crane truck ,truck with crane ,truck mounted crane,etc) is used to lift the cargo,load ,transport and unload heavy stuff.
A crane is a type of machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves, that can be used both to lift and lower materials and to move them horizontally. It is mainly used for lifting heavy things and transporting them to other places.
Cranes are commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment.
Truck mounted crane, is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck, gantry crane.
Truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.
