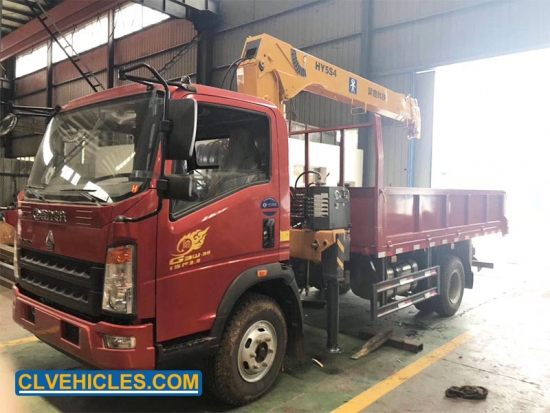

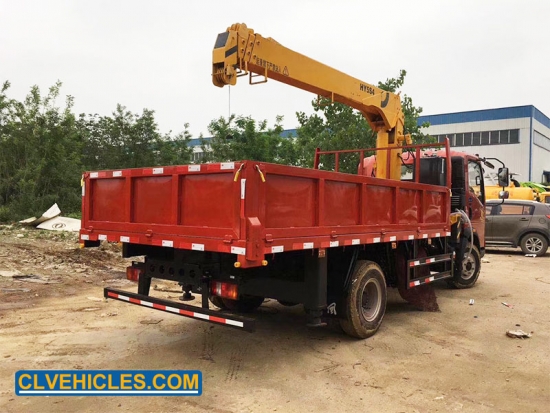

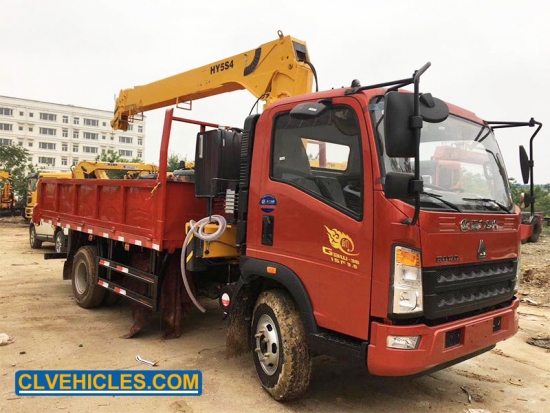

HOWO 5 ton Lorry Crane

Truck mounted crane is a hydraulic lifting and telescopic system to achieve the lifting of the goods, the rotation, lifting equipment, usually assembled in the truck.


  • Brand:

    heritagetrucksolution.COM
  • Model No.:

    CL5102JSQZ
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 23600
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

HOWO 5 ton Lorry Crane


Compared special crane truck with crane, with a high speed, climbing ability characteristics.Enables fast movements, efficiency, energy saving.With a flexible, easy to operate, efficient, safe, and reliable.


Quick Details


Chassis Brand

HOWO

Max.Lifting Capacity of Crane

5000kgs

Max.Lifting Torque

11.25 T.m

Max.Lifting Height

10m

Crane working radius 8m


Applications


For general cargo lifting and other special things like timber and brick by changing other equipment.




Competitive Advantages


Main boom material is HG70 high strength steel

Strengthened hydraulic telescopic horizontal leg

Automatic recovery device for hook.Double speed winch for heavy duty crane.

Multiple modes and position of operation are optional.


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.





Product Parameters



Truck Specification

Truck model

CL5102JSQZ

Cab

HOWO SINGAL ROW CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

95

Overall dimension(mm)

7050*2300*3350

GVW( kg)

9990

Mass in working order kg)

6800

Wheelbase(mm)

3800

F/R track base(mm)

1805/1800

F/R overhang(mm)

1240/1950

Approach/Departure Angel

17/14

Tire

8.25R16(6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

WLY6T46

Bridge

Front axle

2.7T

Rear axle

7.2T

Enging

Model

YN4102QBZL

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

3760

Max output power/rotate speed (hp /rpm )

116/3000

Max torque/rotate speed(N.m/rpm)

320/2100

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Model

SQ5SA2

Match the truck

Above5 tons loading truck

Assembling space (mm)

900

Mass working weight (kgs)

1550

Max lifting weight (t)

5

Max lifting torque(t.m)

11.25

Max lifting height (m)

10

Max working radius (m)

8

Cross section form

Pentagon

Number of arms

3

Length(m)

3.68-8.395

Extending speed(m.s)

0.2

Range

1-71

The arm angular velocity (°/s)

5.8

Hook speed (m/min)

7

Diameter of wire rope (mm)

8

Length of wire rope (mm)

65

Slewing mechanism

Rotating speed (r/min)

2

Rotating range (°)

360

Leg

Type

H

Span(m)

2.28-5.1

Hydraulic system

Pressure (mpa)

18

Capacity(l)

70

Safety device

Overwind alarm

Lifting capacity

Working radius (m)

2.25

3.0

3.5

5.0

5.5

6.5

7.5

8.0

Rated loading (kgs)

5000

3680

2820

1580

1360

1050

830

750












SEND A MESSAGE
heritagetrucksolution is one of the experienced truck manufacturer, export various special trucks, accept custom srevice, welcome to visit our factory and showroom to know more about us.
( This * is Required )
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
Related Product
Truck with crane

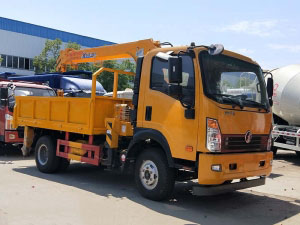

HOWO 4x2 120hp Cargo Truck with 4ton Crane
