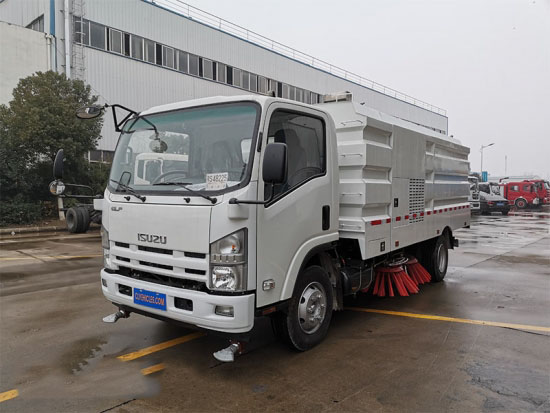

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcIsuzu 700P Road Sweeper Truck Mounted Sweeping Machines
The truck is based on ISUZU chassis, the truck can complete the cleaning of high pressure washing and garbage collection in one operation ,not only to solve the traditional road cleaning machine dust problems, while achieving the road pavement and curb facade of the scrub, fill the gaps at domestic and abroad.It is suitable for cleaning of urban road pavement and curb facade, and can recycle sewage cleaning and so on.
Quick Details
Product name |
Road sweeper truck |
Water Tank Capacity |
2000L |
Garbage Tank Capacity |
7000L |
Chassis Brand |
ISUZU 700P |
Horsepower |
190hp |
Sweeping Width |
3.2m |
High Pressure Cleaning Width |
3.5m |
High Pressure Cleaning Speed |
3-20Km/h |
Maximum Cleaning Capacity |
60000M2/h |
Clean efficiency |
≥ 95% |
Maximum Suction Size |
120mm |
Applications
Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.
3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.
4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.
5.It is with ISUZU chassis ,perfect performance!
Other Types of Road Washing Truck:
Water Tank: 12000 L Water Tank: 9000 L
Garbage Tank: 10000 L Garbage Tank: 7000 L
Customer Services
Vehicle performance and parameters |
|||
Item |
Parameter |
Unit |
|
Working Performance |
Max sweep width |
3.5 |
m |
Low pressure flushing width |
24 |
m |
|
Sweep speed |
3—20 |
km/h |
|
Max sweep capacity |
60000 |
m2/h |
|
Max inhalation of granularity |
≥110 |
mm |
|
Angle of unloading |
≥48 |
。 |
|
Volume of water tank |
2000 |
L |
|
Volume of garbage tank |
7000 |
L |
|
Driving Performance |
Max speed |
98 |
km/h |
Max gradeability |
30 |
% |
|
Braking distance |
≤10 |
m |
|
Min turning diameter |
≤13.6 |
m |
|
Fuel Performance |
Fuel consumption(Driving) |
≤12 |
L/100km |
Fuel consumption(Sweep working at 8km/h) |
6.5 |
L/h |
|
2.7 |
L/10000m2 |
||
Quality Parameters |
Curb weight |
7700 |
kg |
Rated capacity |
8255 |
kg |
|
GVW |
11000 |
kg |
|
Dimension Parameter |
Overall dimensions |
8335*2050*2680 |
mm |
Wheelbase |
3815 |
mm |
|
Track front |
1504 |
mm |
|
Track rear |
1425 |
mm |
|
Front suspension |
1015 |
mm |
|
Rear suspension |
1375 |
mm |
|
Approach angle |
24 |
。 |
|
Departure angle |
15 |
。 |
Main parts and parameters |
||
Chassis |
Chassis model |
QL1110 |
Engine model |
4HK1-TC51 |
|
Engine power |
139kw/ 190hp |
|
Clutch system |
single disc, dry type, diaphragm spring clutch |
|
Gearbox |
5speed +1reverse |
|
Driving axle |
4.0T/7.0T |
|
Cabin |
ISUZU single row, with A/C |
|
Tire |
235/75R17.5 |
|
Vice-fan Engine |
Brand |
JMC |
Rated power |
64 kw/78hp |
|
Fuel type |
Diesel, share with chassis fuel tank |
|
Draught Fan |
Type |
high pressure centrifugal specialized draught fan |
Rated speed |
2600—2900r/min |
|
Actuator type |
Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission |
|
Hydraulic System |
Type |
open type and electrohydraulic control system |
Main part |
gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump |
|
Hydraulic relief pressure |
15Mpa |
|
Hydraulic oil tank |
60L |
|
Spray Watering |
Main part |
electric water pump, water filtration system, spray nozzle, water tank |
Electric System |
Composition |
Madeof chassis electric system and vice-fan engine with other work operating system |
Systemvoltage |
12V |
|
Battery model |
12-80A.H |
|
Suction Nozzle |
Type |
U-shaped, Free to move |
Diameter |
f200mm |
|
Ground clearance in working |
5—10mm |
|
Accessories |
LED arrows lamp Schneider Control switch Draught fan(maintenance-free) Manual pump emergency system |
